Antenna-Satellite (Standard) Connector End View (D5900B)

Harness-Family: Antenna_SDAR

Color: CURRY

Gender: MALE

Part Number: 1/13061/81

Part Description: Not Available

Connector No: D5900B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

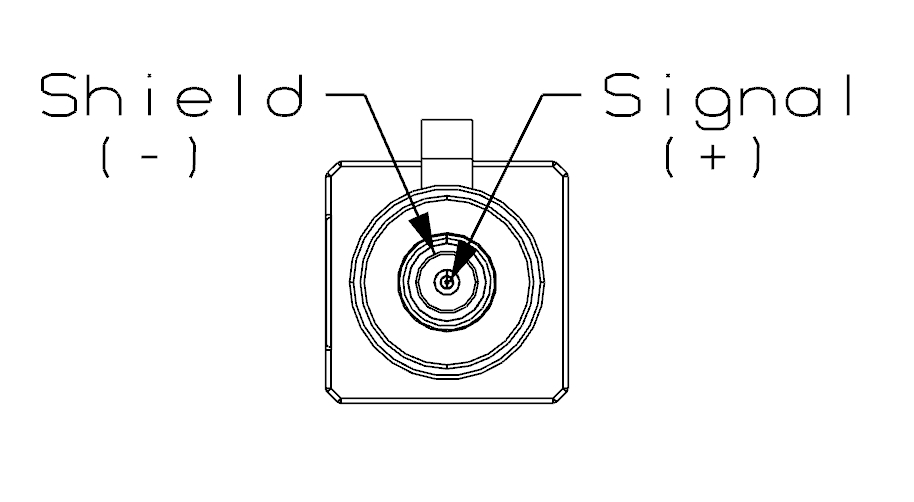

Fig 1: Antenna-Satellite Connector End View (Standard)

Courtesy of CHRYSLER

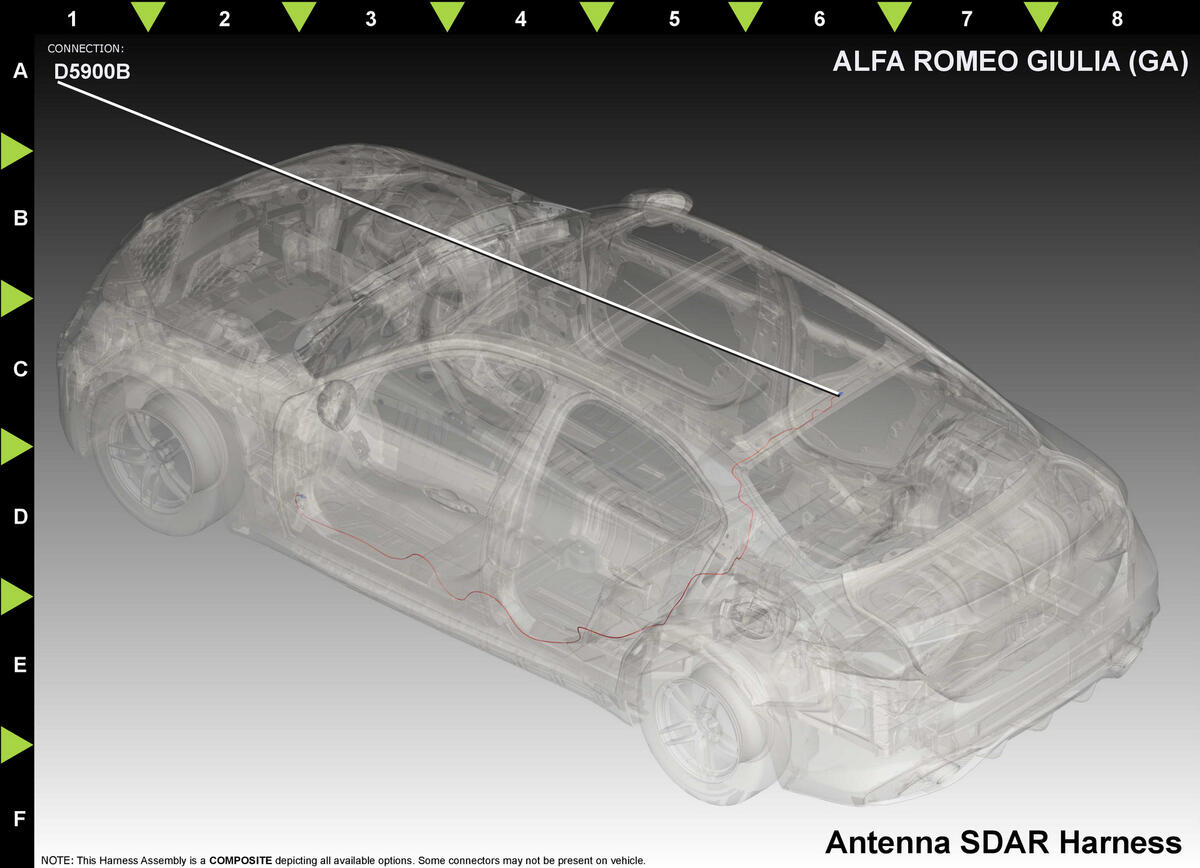

Fig 2: Antenna-Satellite Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D106

0.81

SATELLITE RADIO ANTENNA SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
