Sensor-Charge Air Coolant (2.2L) Connector End View (D1649A)

Harness-Family: Headlamp_Dash

Color: BLACK

Gender: FEMALE

Part Number: 1_928_403_698

Part Description: Not Available

Connector No: D1649A

Option: 2.2L

Repair Kit Part Number: Not Available

Cavity Count: null

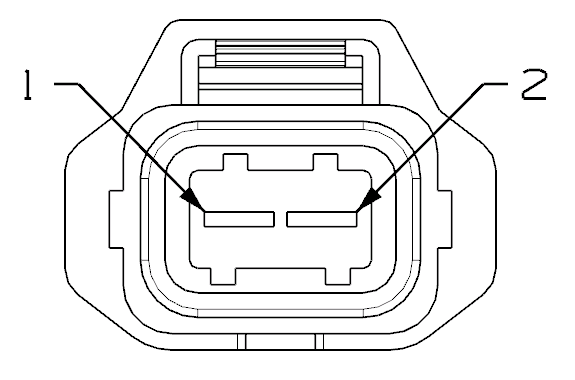

Fig 1: Sensor-Charge Air Coolant Connector End View (2.2L)

Courtesy of CHRYSLER

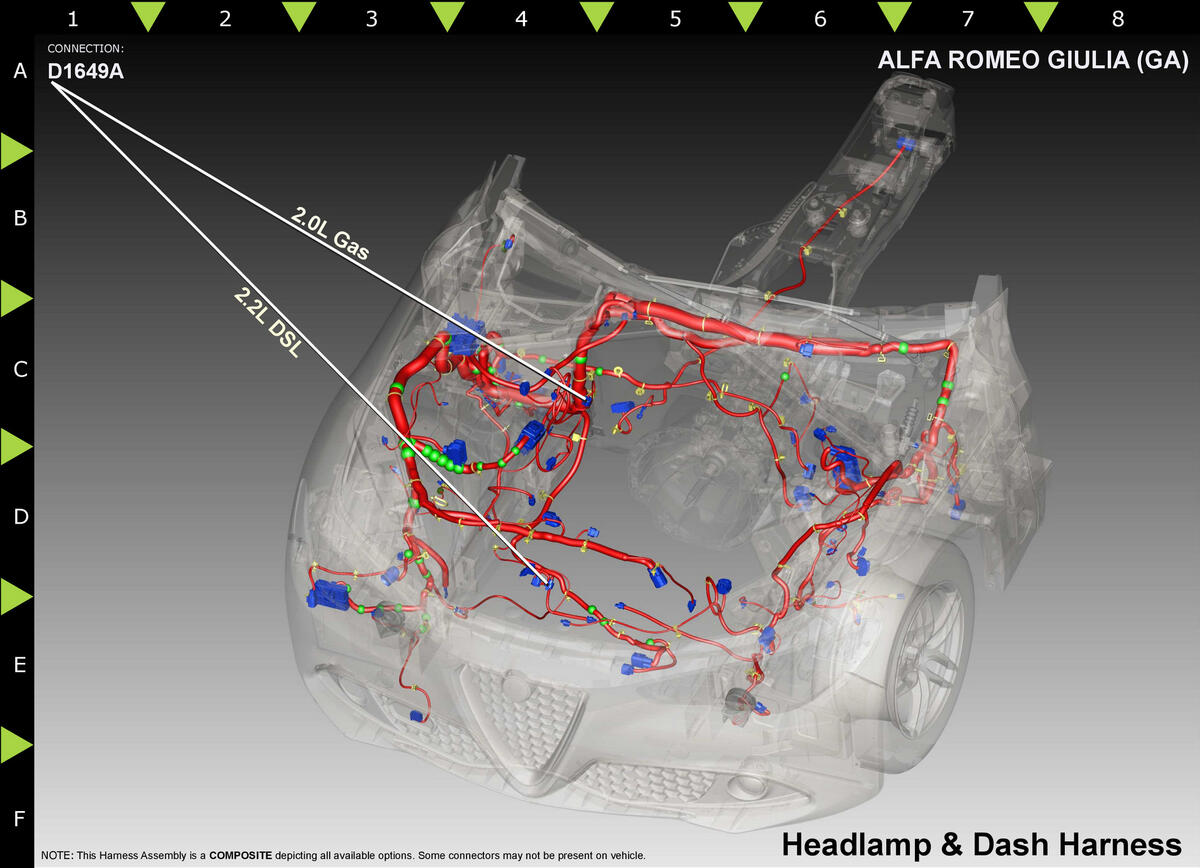

Fig 2: Sensor-Charge Air Coolant Component Location (2.2L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K222

RD/YE

0.5

CHARGE AIR COOLANT TEMP SIGNAL

2.2L

K901

GY/BK

0.5

SENSOR GROUND

2.2L

⁽¹⁾	Pins not listed are not used for this connector
