Sensor-Exhaust Gas Temperature 1/3 (E6C 2.0L) Connector End View (D2892A)

Harness-Family: Headlamp_Dash

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 54200410

Part Description: Not Available

Connector No: D2892A

Option: E6C 2.0L

Repair Kit Part Number: Not Available

Cavity Count: null

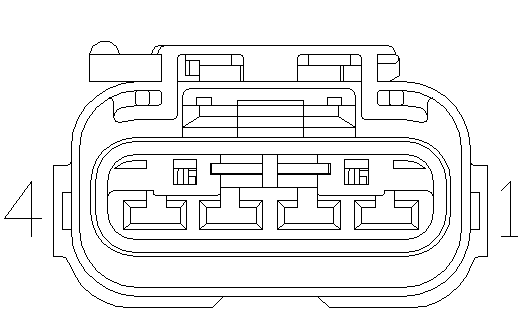

Fig 1: Sensor-Exhaust Gas Temperature 1/3 Connector End View (E6C 2.0L)

Courtesy of CHRYSLER

Fig 2: Sensor-Exhaust Gas Temperature 1/3 Component Location (E6C 2.0L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

K901

GN/WH

0.75

SENSOR GROUND

2.0L GPF

K355

BN/WH

0.75

EXHAUST DIFFERENTIAL PRESSURE SIGNAL

2.0L GPF

K373

VT/OG

0.75

EXHAUST GAS PRESSURE SENSOR SIGNAL

2.0L GPF

K852

DB/BK

0.75

5 VOLT SUPPLY

2.0L GPF

⁽¹⁾	Pins not listed are not used for this connector
