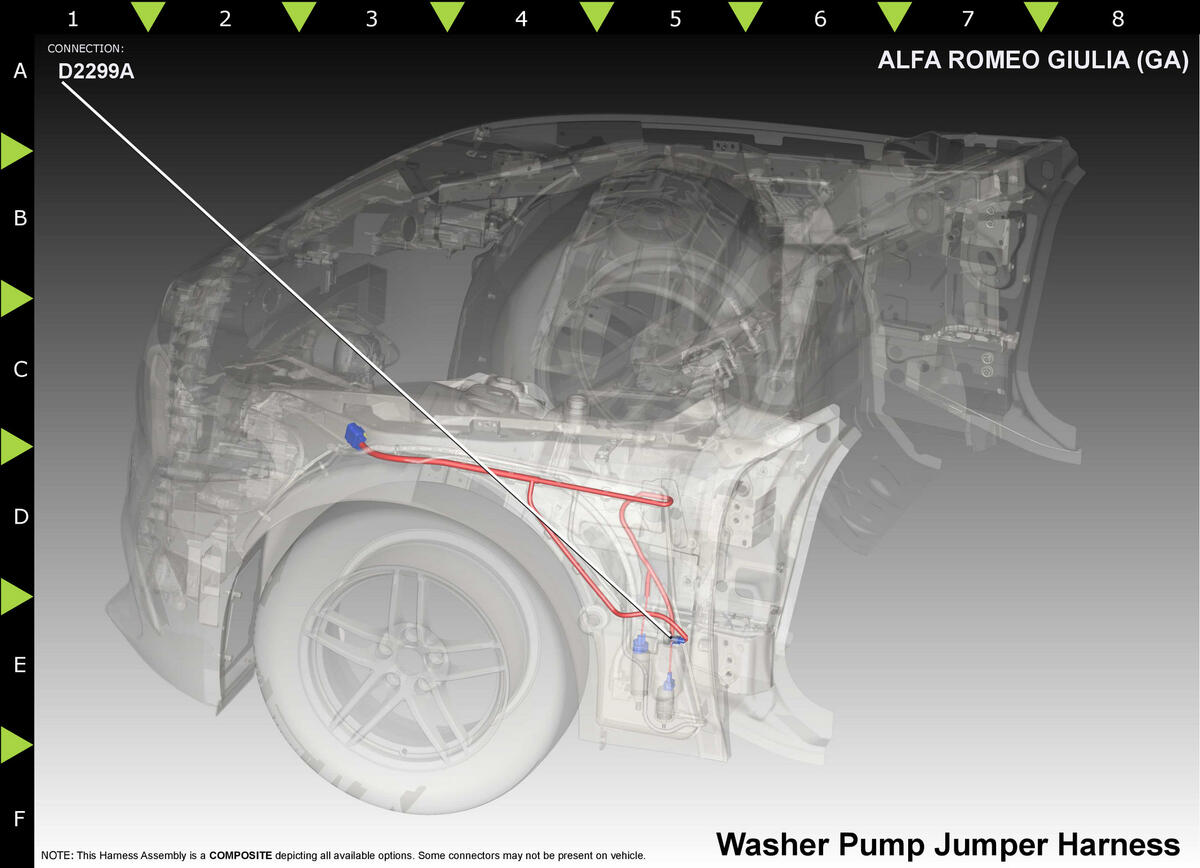

Sensor-Washer Fluid Level-Front (Standard) Connector End View (D2299A)
Harness-Family: Washer_Pump_Jumper
Color: null
Gender: MALE
Part Number: null
Part Description: Not Available
Connector No: D2299A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | W1 | BU/GN | 0.5 | WASHER FLUID LEVEL SWITCH SENSE | N/A | ||
| 2 | W11 | BK/VT | 0.5 | LOW WASH SW RTN 1 | N/A | ||
|
|||||||
