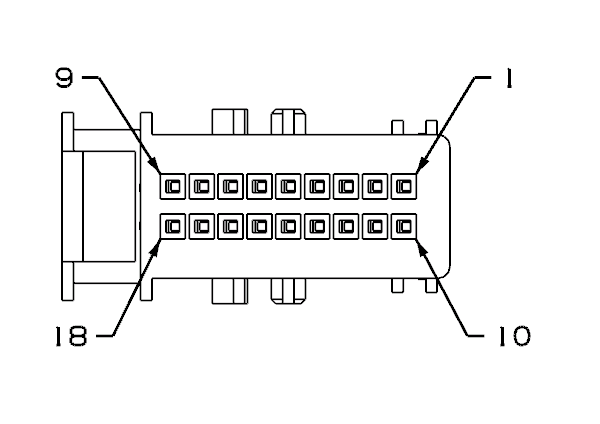

Cluster (Standard) Connector End View (D3809A)

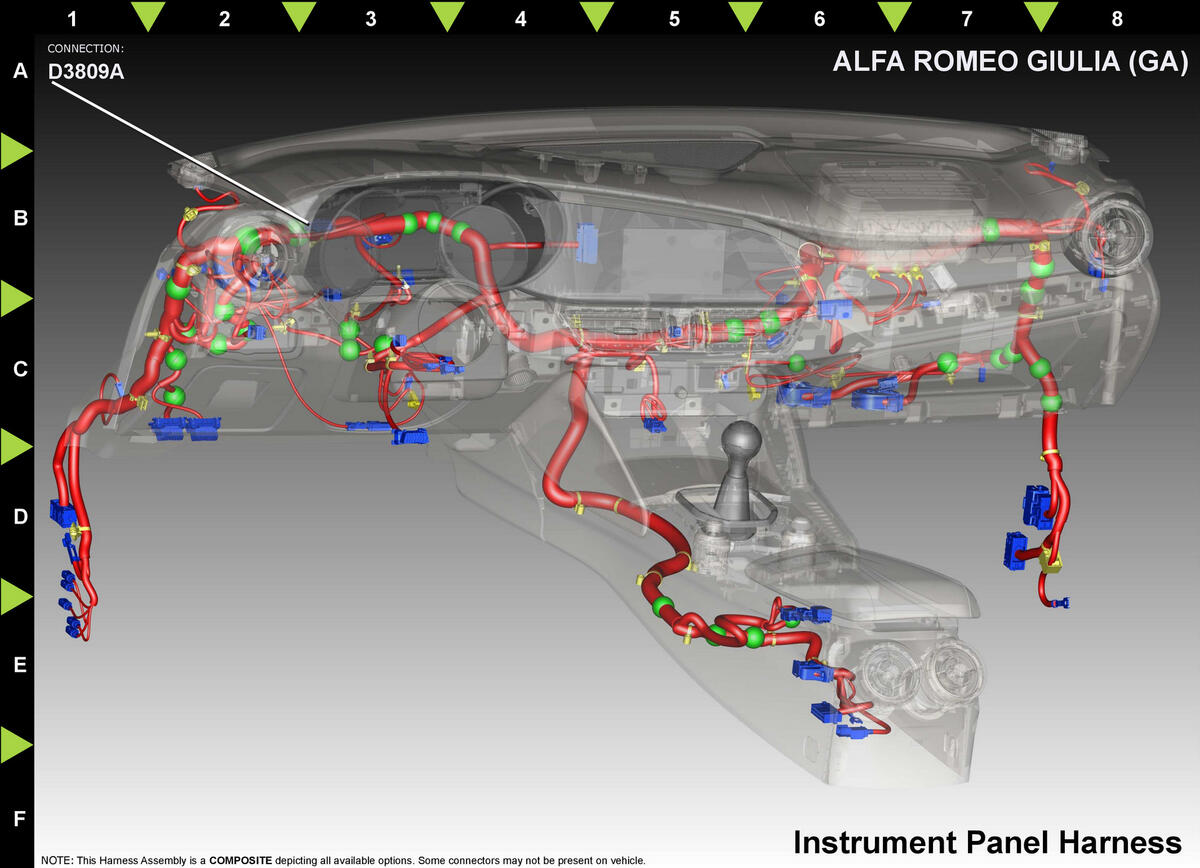

Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 1/08347/07
Part Description: Not Available
Connector No: D3809A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z908 | BK | 0.5 | GROUND | N/A | ||
| 2 | A901 | RD/BK | 0.5 | FUSED B(+) | LHD | ||
| 3 | F741 | DB/RD | 0.5 | IGNITION RUN/START OUTPUT | LHD | ||
| 4 | D404 | GY/GN | 0.35 | LIN BUS | COMPASS | ||
| 5 | D158 | WH | 0.35 | CAN IHS (-) | N/A | ||
| 6 | D157 | DB | 0.35 | CAN IHS (+) | N/A | ||
| 11 | D12 | BN | 0.35 | CAN C (-) | N/A | ||
| 12 | D12 | BN | 0.35 | CAN C (-) | N/A | ||
| 13 | D11 | GN | 0.35 | CAN C (+) | N/A | ||
| 14 | D11 | GN | 0.35 | CAN C (+) | N/A | ||
| 15 | G907 | BN | 0.35 | EVIC MUX RETURN | N/A | ||
|
|||||||
