G001A (Standard) Connector End View (G001A)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: 1/10203/54

Part Description: Not Available

Connector No: G001A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: G001a Connector End View (Standard)

GCWD1013721

Courtesy of CHRYSLER

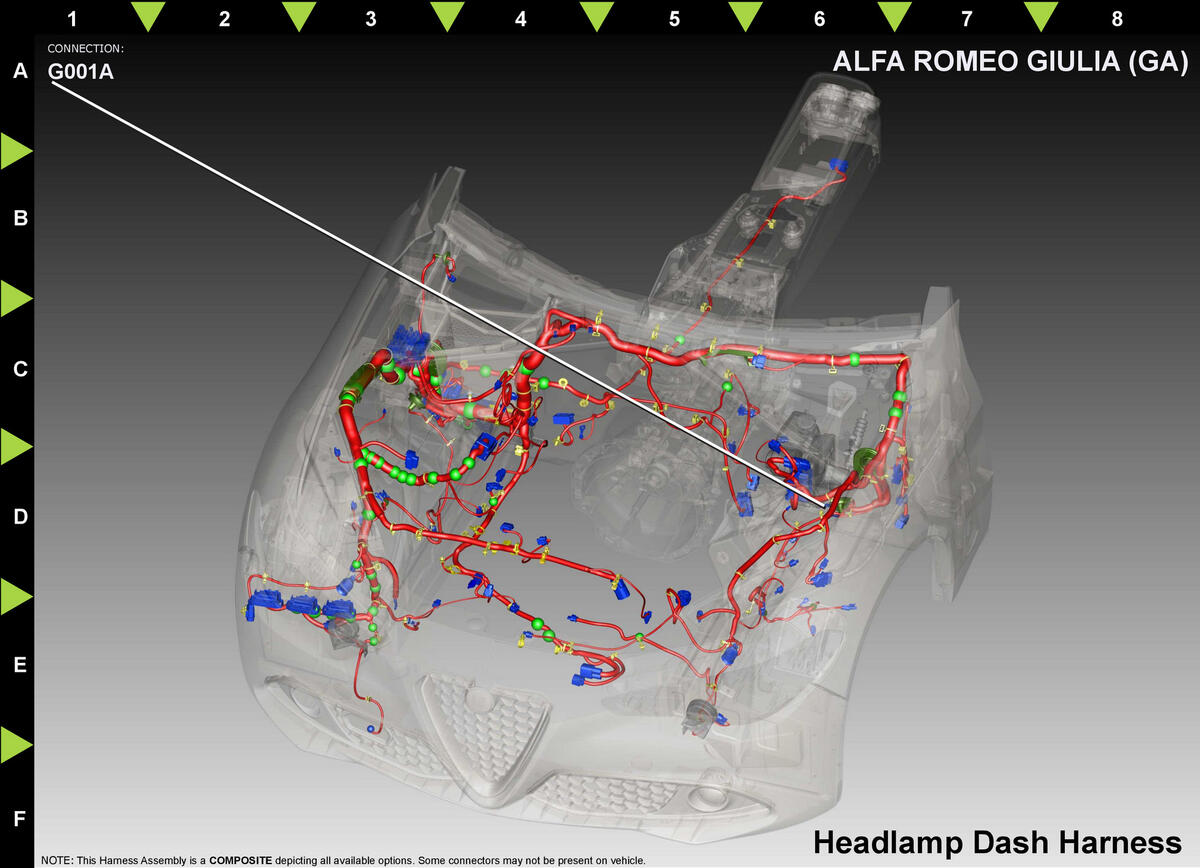

Fig 2: G001a Component Location (Standard)

GCWD1267984

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z101

BK

1.5

GROUND

N/A

1

Z102

BK

0.5

GROUND

2.2L

⁽¹⁾	Pins not listed are not used for this connector
