Switch-Glove Box (Standard) Connector End View (D2867A)

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 12015197

Part Description: Not Available

Connector No: D2867A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

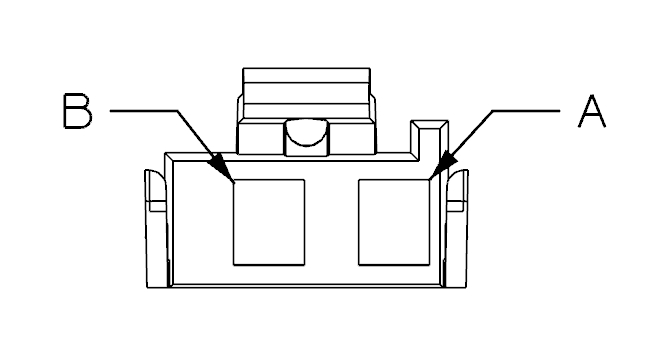

Fig 1: Switch-Glove Box Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Glove Box Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

M28

WH/BK

0.5

GLOVE BOX/MAP LAMPS DRIVER

N/A

M28

0.5

GLOVE BOX/MAP LAMPS DRIVER

LHD

⁽¹⁾	Pins not listed are not used for this connector
