Switch-Remote Radio-Center Console (Standard) Connector End View (D2274A)

Harness-Family: Console_Center

Color: BLACK

Gender: MALE

Part Number: 1/10813/07

Part Description: Not Available

Connector No: D2274A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

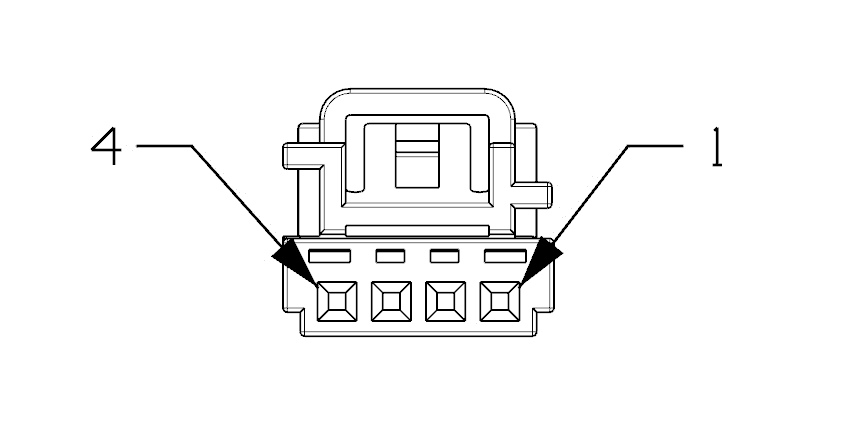

Fig 1: Switch-Remote Radio-Center Console Connector End View (Standard)

Courtesy of CHRYSLER

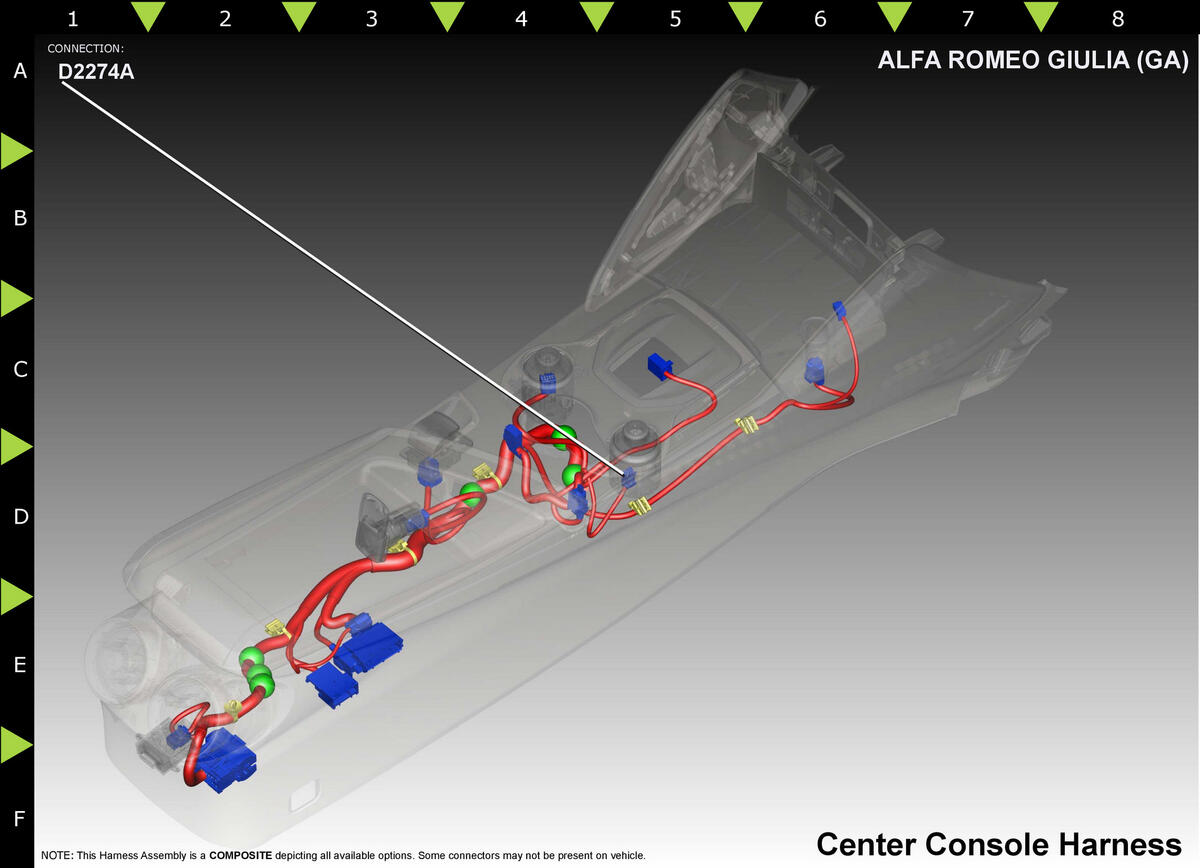

Fig 2: Switch-Remote Radio-Center Console Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A901

WH/DB

0.5

FUSED B(+)

LHD

D408

WH/YE

0.35

LIN BUS

LHD

Z221

WH/BK

0.5

GROUND

LHD

X175

WH/GN

0.5

VOLUME SIGNAL 1

LHD

⁽¹⁾	Pins not listed are not used for this connector
