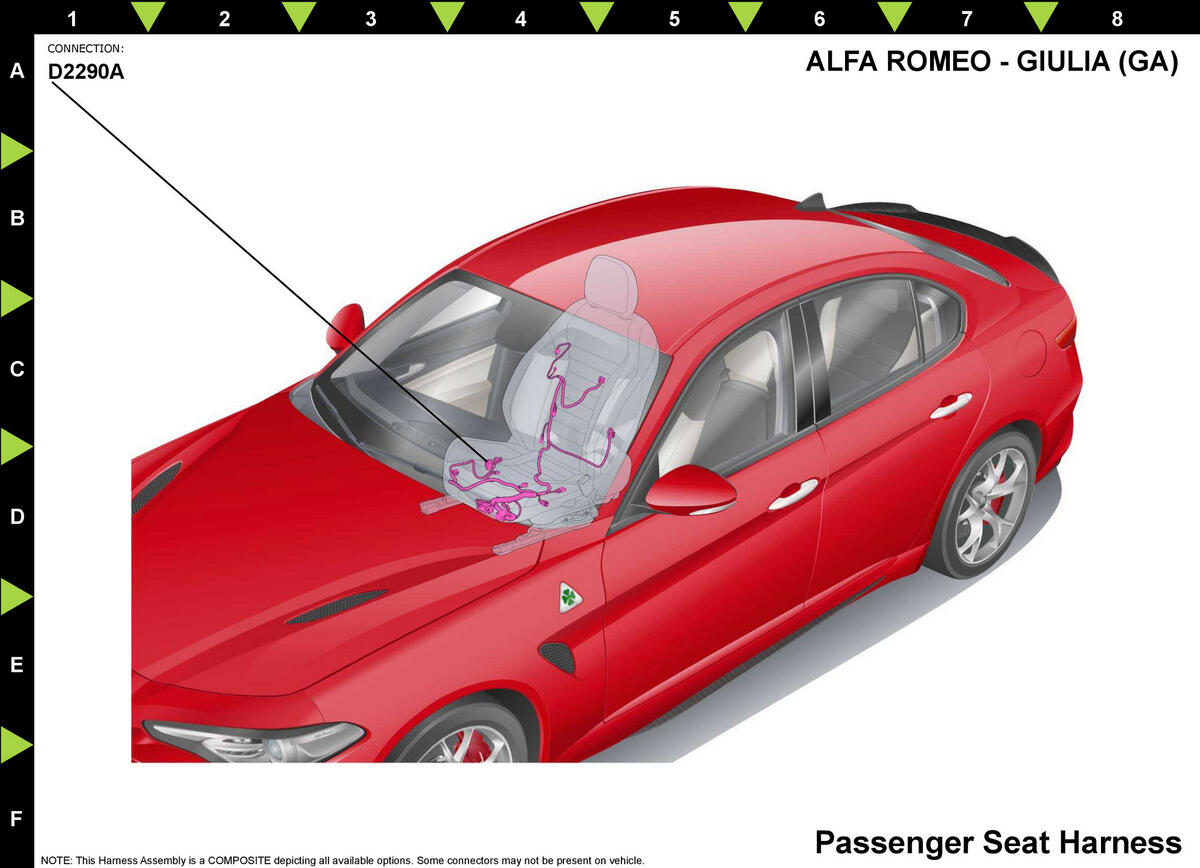

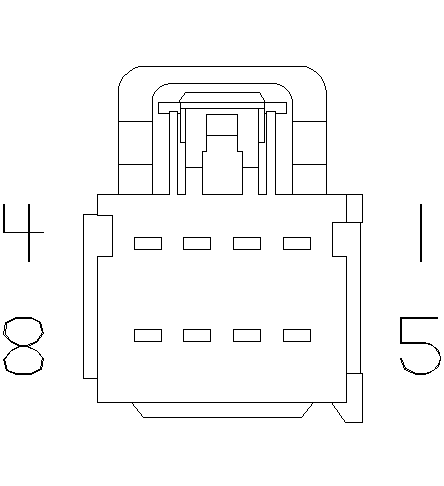

Switch-Seat-Passenger (Standard) Connector End View (D2290A)
Harness-Family: Seat_Passenger
Color: LIGHT GRAY
Gender: FEMALE
Part Number: 7283-3441-40
Part Description: Not Available
Connector No: D2290A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z332 | WH/GN | 1.5 | GROUND | EXCEPT POWER BOLSTER | ||
| 2 | P18 | GY/RD | 1.5 | PASSENGER SEAT FRONT UP DRIVER | EXCEPT REAR HEATED SEATS | ||
| 3 | P20 | WH | 1.5 | PASSENGER SEAT FRONT RISER DOWN DRIVER | N/A | ||
| 4 | P14 | YE/DB | 1.5 | PASSENGER SEAT HORIZONTAL FORWARD DRIVER | N/A | ||
| 5 | A924 | WH/RD | 1.5 | FUSED B(+) | EXCEPT EXPORT PREMIUM | ||
| 5 | F782 | WH/RD | 1.5 | POWER SEAT RELAY OUTPUT | EXPORT PREMIUM | ||
| 6 | P12 | YE/GN | 1.5 | PASSENGER SEAT REAR RISER DOWN DRIVER | N/A | ||
| 7 | P44 | BN | 1.5 | PASSENGER RECLINER UP SWITCH SENSE | N/A | ||
| 8 | P42 | DB | 1.5 | PASSENGER RECLINER DOWN SWITCH SENSE | N/A | ||
|
|||||||
