Switch-SEATBELT Buckle-Rear Center (Standard) Connector End View (D2883A)

Harness-Family: Body

Color: GREEN

Gender: FEMALE

Part Number: 1/10855/83

Part Description: Not Available

Connector No: D2883A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

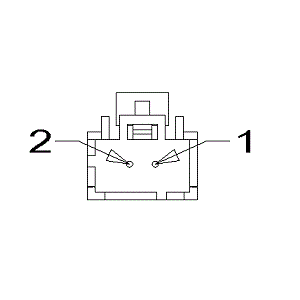

Fig 1: Switch-Seatbelt Buckle-Rear Center Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Switch-Seatbelt Buckle-Rear Center Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R27

BN/VT

0.35

2ND ROW SEAT BELT SWITCH SENSE

EXPORT

R730

BN/DB

0.35

PASSENGER SEAT DETECTION RETURN

EXPORT

⁽¹⁾	Pins not listed are not used for this connector
