Heater-Engine Oil Vapor (2.2L Base) Connector End View (D2411A)

Harness-Family: Engine_22L

Color: BLACK

Gender: FEMALE

Part Number: 1/12718/97

Part Description: Not Available

Connector No: D2411A

Option: 2.2L BASE

Repair Kit Part Number: Not Available

Cavity Count: null

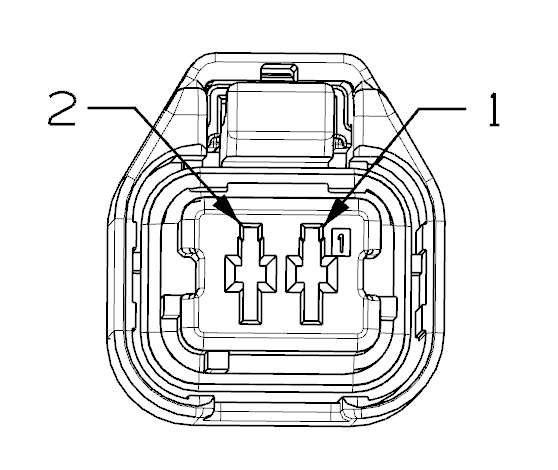

Fig 1: Heater-Engine Oil Vapor Connector End View (2.2L BASE)

Courtesy of CHRYSLER

Fig 2: Heater-Engine Oil Vapor Component Location (2.2L BASE)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F145

WH/RD

1.0

BLOW-BY RELAY OUTPUT

2.2L BASE

Z912

BK/VT

1.0

GROUND

2.2L BASE

⁽¹⁾	Pins not listed are not used for this connector
