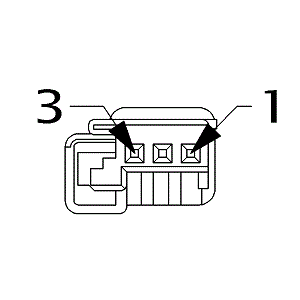

Indicator-Seat Belt Reminder (Standard) Connector End View (D2936A)

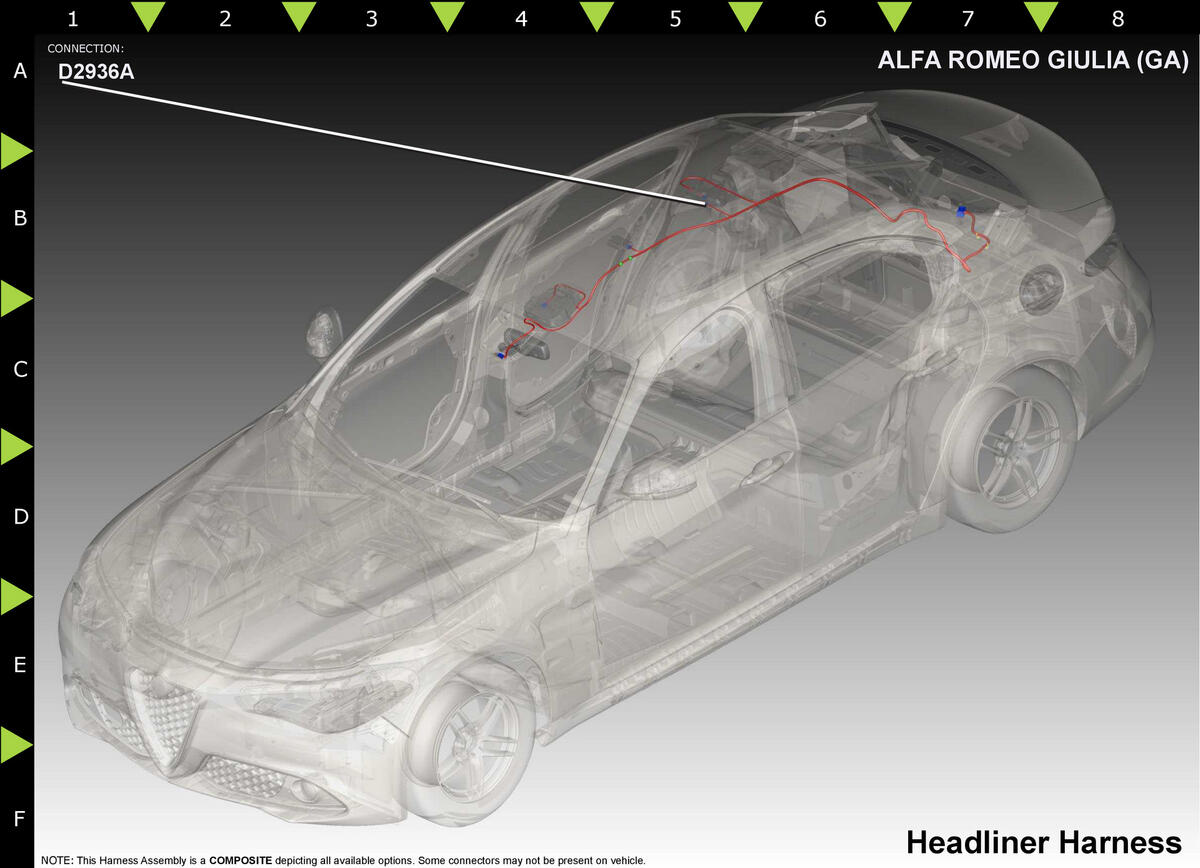

Harness-Family: Headliner
Color: BLACK
Gender: FEMALE
Part Number: 1/14201/87
Part Description: Not Available
Connector No: D2936A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | D401 | GN/GY | 0.35 | LIN BUS 1 | CHILD DETECTION | ||
| 2 | Z342 | BK | 0.5 | GROUND | CHILD DETECTION | ||
| 3 | A130 | RD/YE | 0.5 | FUSED B(+) | CHILD DETECTION | ||
|
|||||||
