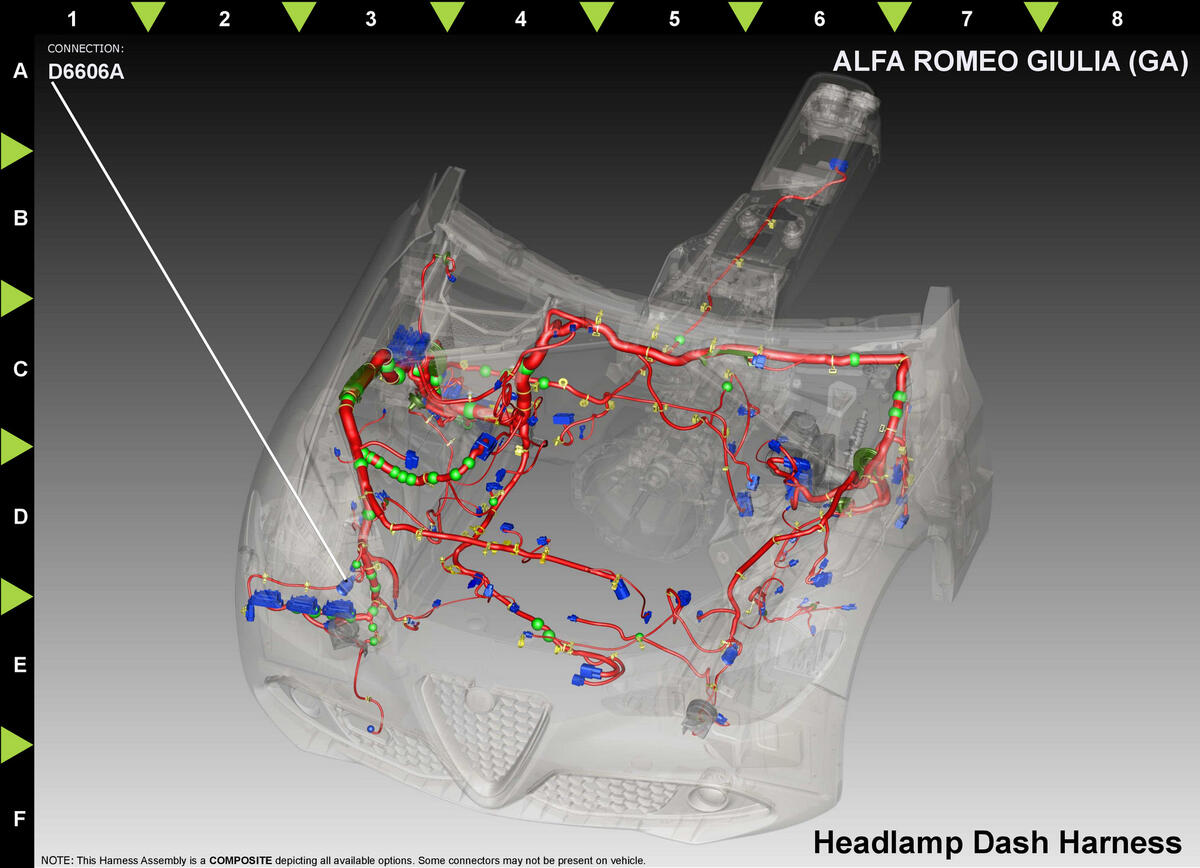

Lamp-Assembly-Right Front (Standard) Connector End View (D6606A)
Harness-Family: Headlamp_Dash
Color: BLACK
Gender: FEMALE
Part Number: 1/05285/87
Part Description: Not Available
Connector No: D6606A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | L44 | GY/BK | 0.5 | RIGHT LOW BEAM DRIVER | N/A | ||
| 2 | L59 | YE/BK | 0.5 | RIGHT DRL LAMP DRIVER | N/A | ||
| 3 | L59 | GN/BK | 0.35 | RIGHT DRL LAMP DRIVER | PREMIUM | ||
| 4 | L60 | DB/WH | 0.5 | RIGHT FRONT TURN LAMP DRIVER | N/A | ||
| 5 | L34 | GN | 0.5 | RIGHT HIGH BEAM DRIVER | LHD | ||
| 6 | Z103 | BK/GN | 0.35 | GROUND | BASE | ||
| 6 | L552 | WH/BN | 0.35 | RIGHT FRONT LIGHTING FAULT SENSE | PREMIUM | ||
| 7 | Z103 | BK/GN | 0.35 | GROUND | PREMIUM | ||
| 8 | Z103 | BK/GN | 0.35 | GROUND | PREMIUM | ||
| 9 | F741 | WH/DB | 0.5 | IGNITION RUN/START OUTPUT | N/A | ||
| 10 | L162 | BN/GY | 0.5 | RIGHT SIDE REPEATER LAMP CONTROL OUTPUT | PREMIUM EXCEPT FOG LAMPS | ||
| 11 | L144 | OG | 0.35 | RIGHT REAR SIDEMARKER LAMP CONTROL | N/A | ||
| 12 | L960 | VT/GY | 0.35 | HEADLAMP LEVELING SENSOR FRONT SIGNAL | BASE | ||
| 12 | D405 | GY/GN | 0.35 | LIN BUS | PREMIUM | ||
| 13 | Z103 | BK/VT | 0.35 | GROUND | BASE | ||
| 14 | Z103 | BK | 1.5 | GROUND | N/A | ||
|
|||||||
