Latch-Door-Driver (Standard) Connector End View (D6611A)

Harness-Family: Door_Front_Driver

Color: BLACK

Gender: FEMALE

Part Number: 1/08359/87

Part Description: Not Available

Connector No: D6611A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

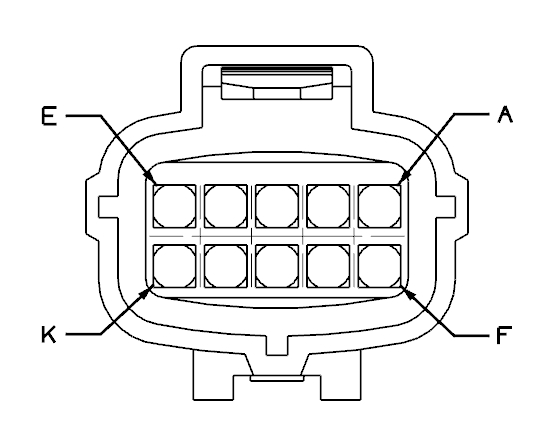

Fig 1: Latch-Door-Driver Connector End View (Standard)

Courtesy of CHRYSLER

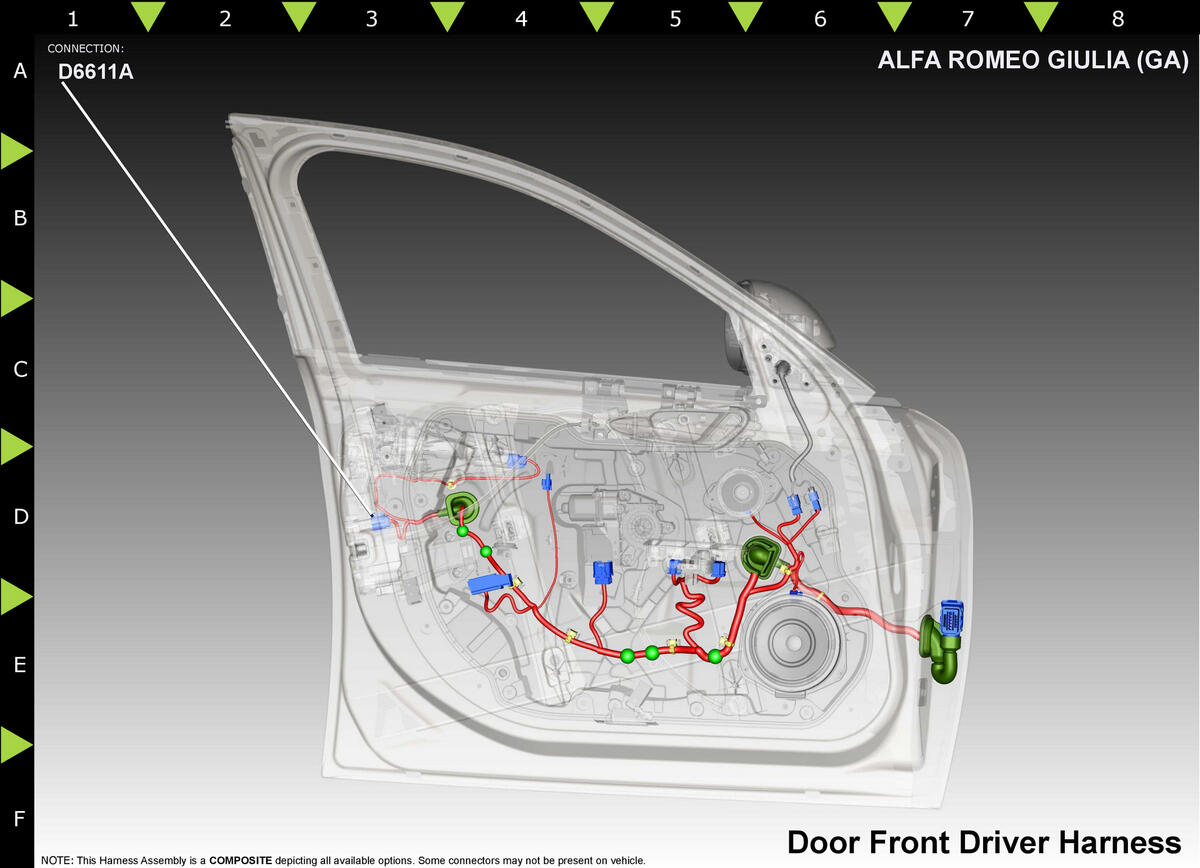

Fig 2: Latch-Door-Driver Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G75

WH/GN

0.35

DRIVER DOOR AJAR SWITCH SENSE

N/A

P371

VT/RD

0.35

DOOR LOCK SW RTN DRIV

N/A

P372

0.5

DOOR LOCK SW RTN PASS

N/A

G755

WH/RD

0.35

DRIVER DOOR SECONDARY AJAR SWITCH SENSE

N/A

P125

WH/GN

0.35

LEFT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE

EXPORT

P33

WH/BK

DOOR LOCK DRIVER

N/A

OG/GN

DOOR UNLOCK DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
