Latch-Door-Passenger (Standard) Connector End View (D6615A)

Harness-Family: Door_Front_Pass

Color: BLACK

Gender: FEMALE

Part Number: 1/14929/87

Part Description: Not Available

Connector No: D6615A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

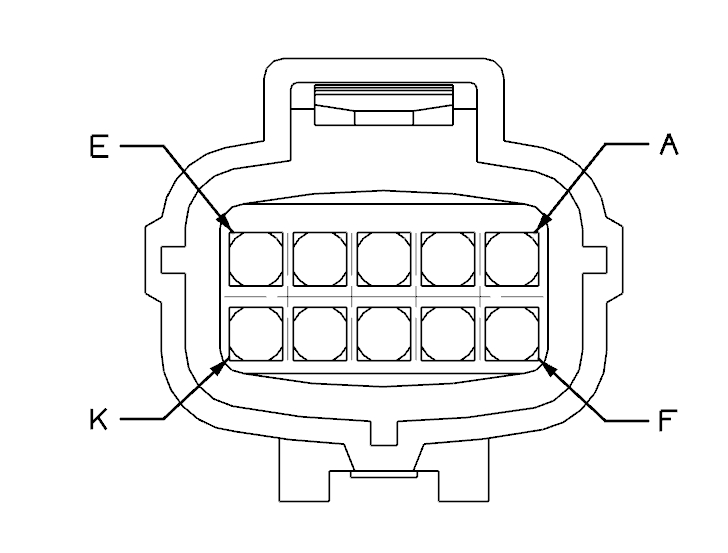

Fig 1: Latch-Door-Passenger Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Latch-Door-Passenger Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P371

VT/RD

0.35

DOOR LOCK SW RTN DRIV

N/A

P372

0.5

DOOR LOCK SW RTN PASS

N/A

G120

WH/RD

0.35

DOOR AJAR SIGNAL

N/A

P33

WH/BK

DOOR LOCK DRIVER

N/A

OG/GN

DOOR UNLOCK DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
