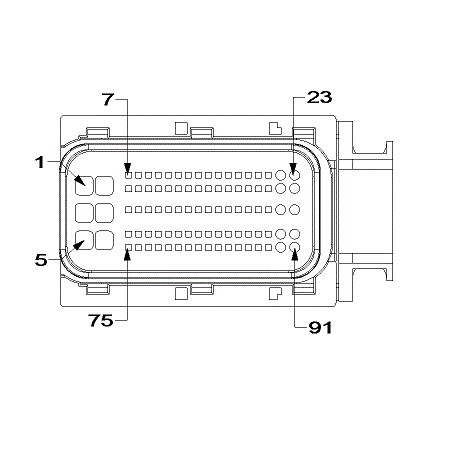

Module-Powertrain Control C1 (2.0L) Connector End View (D3821A)

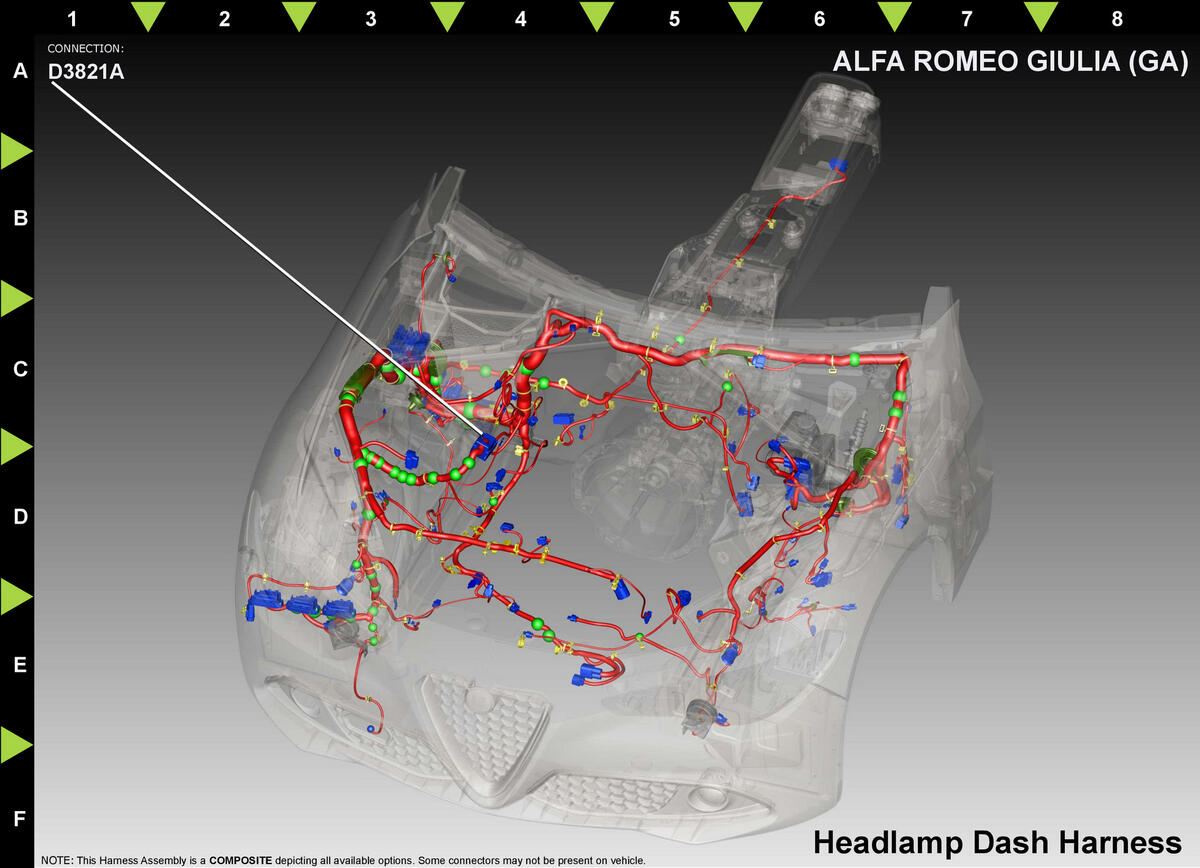

Harness-Family: Headlamp_Dash
Color: BLACK
Gender: FEMALE
Part Number: 1/11901/07
Part Description: Not Available
Connector No: D3821A
Option: 2.0L
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z108 | BK | 2.5 | GROUND | 2.0L | ||
| 2 | Z108 | BK | 2.5 | GROUND | 2.0L | ||
| 3 | F343 | DB/RD | 2.5 | FUSED ASD RELAY OUTPUT | 2.0L | ||
| 4 | Z108 | BK | 2.5 | GROUND | 2.0L | ||
| 5 | F343 | DB/RD | 2.5 | FUSED ASD RELAY OUTPUT | 2.0L | ||
| 6 | F343 | DB/RD | 2.5 | FUSED ASD RELAY OUTPUT | 2.0L | ||
| 7 | K855 | RD | 0.5 | 5 VOLT SUPPLY | 2.0L | ||
| 8 | K167 | BK/GN | 0.5 | APP SENSOR GROUND 1 | 2.0L | ||
| 9 | K852 | DB/WH | 0.5 | 5 VOLT SUPPLY | 2.0L GPF/2.0L | ||
| 10 | K400 | BK/VT | 0.5 | APP SENSOR GROUND 2 | 2.0L | ||
| 11 | K299 | WH/GN | 0.75 | O2 1/2 HEATER CONTROL | 2.0L | ||
| 12 | K904 | WH/DB | 0.5 | O2 1/2 RETURN | 2.0L | ||
| 13 | K141 | DB/GN | 0.5 | O2 1/2 SIGNAL | 2.0L | ||
| 14 | K183 | YE/RD | 0.5 | HIGH TEMPERATURE CONTROL VALVE SENSOR SIGNAL | 2.0L | ||
| 15 | T750 | GY/YE | 0.75 | STARTER RELAY OUTPUT | 2.0L | ||
| 17 | C18 | GY/BN | 0.35 | A/C PRESSURE SIGNAL | 2.0L | ||
| 18 | K181 | GY | 0.5 | FUEL PRESSURE SIGNAL | 2.0L | ||
| 19 | K25 | GY/BN | 0.5 | ECT 2 SIGNAL | 2.0L AWD | ||
| 21 | N70 | GN/OG | 0.35 | FUEL TANK PRESSURE SIGNAL | 2.0L EXCEPT EXPORT | ||
| 22 | K29 | GY/GN | 0.75 | APP SIGNAL 2 | 2.0L | ||
| 23 | K23 | GY/YE | 0.75 | APP SIGNAL 1 | 2.0L | ||
| 24 | K858 | RD/YE | 0.5 | 5 VOLT SUPPLY | 2.0L | ||
| 25 | K855 | GN/YE | 0.35 | 5 VOLT SUPPLY | 2.0L EXCEPT EXPORT | ||
| 26 | K901 | GN/BK | 0.5 | SENSOR GROUND | 2.0L GPF/2.0L | ||
| 27 | K901 | GY/BK | 0.5 | SENSOR GROUND | 2.0L | ||
| 33 | F741 | DB | 0.5 | IGNITION RUN/START OUTPUT | 2.0L | ||
| 34 | K68 | WH/YE | 0.5 | INLET AIR PRESSURE SIGNAL | 2.0L | ||
| 35 | K355 | BN/WH | 0.75 | EXHAUST DIFFERENTIAL PRESSURE SIGNAL | 2.0L GPF | ||
| 36 | K120 | WH/GN | 0.5 | IAT SIGNAL | 2.0L | ||
| 37 | K222 | RD/YE | 0.5 | CHARGE AIR COOLANT TEMP SIGNAL | 2.0L | ||
| 38 | K68 | WH/VT | 0.5 | INLET AIR PRESSURE SIGNAL | 2.0L | ||
| 39 | K373 | VT/OG | 0.75 | EXHAUST GAS PRESSURE SENSOR SIGNAL | 2.0L GPF | ||
| 40 | K179 | GN | 0.75 | FUEL RAIL PRESSURE SIGNAL 1 | 2.0L | ||
| 44 | K806 | WH/BK | 0.75 | STOP START HOOD AJAR SW SIG | 2.0L EXCEPT EXPORT | ||
| 45 | D12 | BN | 0.35 | CAN C (-) | 2.0L | ||
| 46 | D11 | GN | 0.35 | CAN C (+) | 2.0L | ||
| 47 | D12 | GY | 0.35 | CAN C (-) | 2.0L GPF/2.0L HO | ||
| 48 | D11 | YE | 0.35 | CAN C (+) | 2.0L GPF/2.0L HO | ||
| 56 | K542 | VT | 0.75 | ASD RELAY CONTROL | 2.0L | ||
| 57 | N211 | GY/DB | 0.75 | FPCM PWM CONTROL | 2.0L | ||
| 62 | N49 | GY/WH | 0.35 | FAN DIAGNOSTIC SIGNAL | 2.0L | ||
| 63 | K157 | WH/DB | 0.5 | MAF SIGNAL | 2.0L | ||
| 65 | K105 | WH/OG | 0.5 | INLET AIR HUMIDITY SIGNAL | 2.0L | ||
| 69 | F145 | RD/BK | 0.5 | BLOW-BY RELAY OUTPUT | 2.0L | ||
| 71 | B134 | GN/WH | 0.5 | BRAKE SIGNAL 1 | 2.0L | ||
| 72 | K108 | OG/DB | 0.5 | ESIM SIGNAL | 2.0L EXCEPT EXPORT | ||
| 73 | K501 | WH | 0.75 | COOLANT BYPASS VALVE CONTROL | 2.0L | ||
| 74 | K175 | YE/BK | 0.75 | RAD FAN CONTROL | 2.0L | ||
| 83 | K335 | OG/WH | 0.5 | BLOW-BY RELAY CONTROL | 2.0L | ||
| 85 | C281 | OG/WH | 0.35 | A/C CLUTCH RELAY CONTROL | 2.0L | ||
| 86 | K205 | BN/GY | 0.75 | HIGH TEMP CONTROL VALVE DRIVER | 2.0L | ||
| 87 | K187 | YE/GN | 0.5 | COOLANT BYPASS VALVE CONTROL | 2.0L | ||
| 88 | K31 | DB/WH | 0.5 | FUEL PUMP CONTROL | 2.0L | ||
| 89 | T752 | OG/WH | 0.5 | STARTER RELAY CONTROL | 2.0L | ||
| 91 | A901 | RD/GN | 0.75 | FUSED B(+) | 2.0L | ||
|
|||||||
