Port-Media C1 (Standard) Connector End View (D2470A)

Harness-Family: IP

Color: GRAY

Gender: FEMALE

Part Number: 7287-0492-40

Part Description: Not Available

Connector No: D2470A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

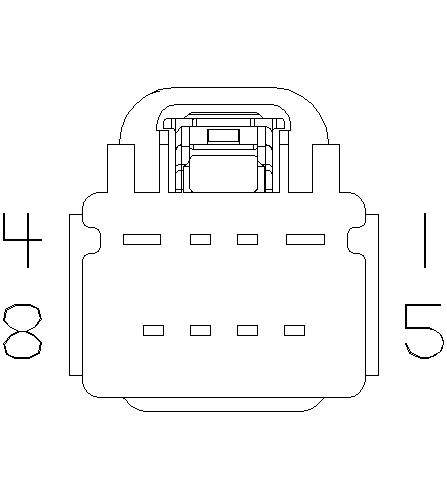

Fig 1: Port-Media C1 Connector End View (Standard)

Courtesy of CHRYSLER

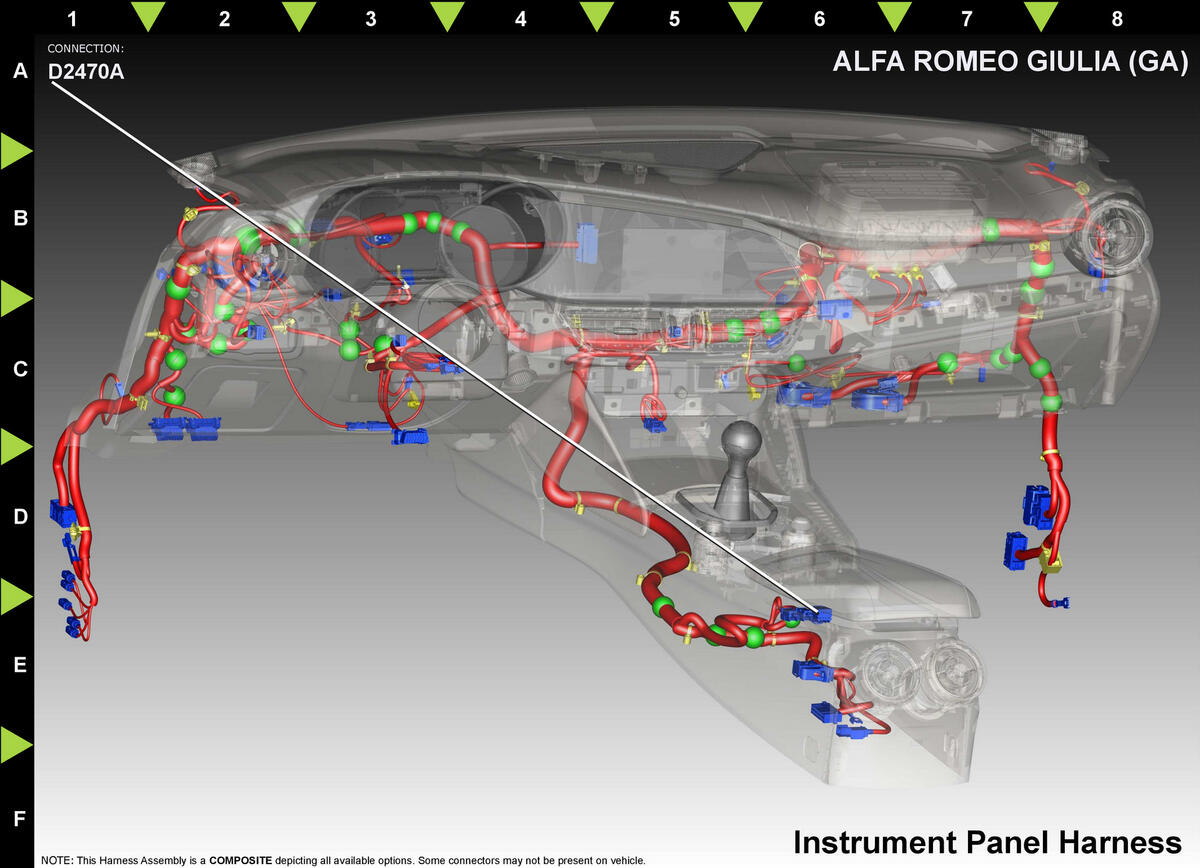

Fig 2: Port-Media C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A901

WH/RD

0.5

FUSED B(+)

N/A

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

Z908

GROUND

N/A

X486

0.35

AUX AUDIO LEFT SIGNAL

N/A

X487

0.35

AUX AUDIO RIGHT SIGNAL

N/A

X488

0.35

AUX AUDIO COMMON

N/A

X489

0.35

AUX AUDIO DEVICE DETECT SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
