Pump-Auxiliary Coolant (2.2L) Connector End View (D3046A)

Harness-Family: Headlamp_Dash

Color: BLACK

Gender: FEMALE

Part Number: 1/11925/97

Part Description: Not Available

Connector No: D3046A

Option: 2.2L

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Pump-Auxiliary Coolant Connector End View (2.2L)

Courtesy of CHRYSLER

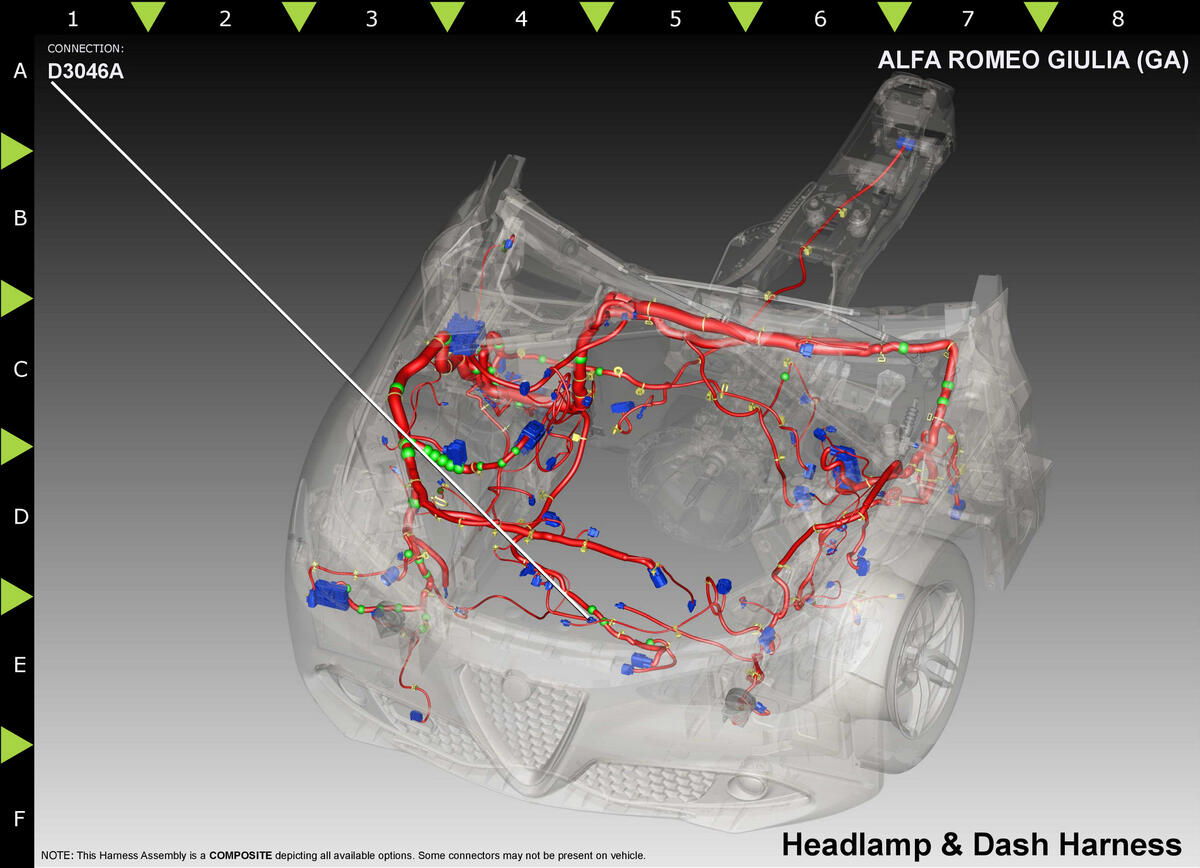

Fig 2: Pump-Auxiliary Coolant Component Location (2.2L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z101

0.5

GROUND

2.2L

F743

DB/GN

1.0

GENERIC IGN RUN/START 3

BASE

K53

0.75

EGR COOLER BYPASS CONTROL

2.2L

⁽¹⁾	Pins not listed are not used for this connector
