S049 (Standard) Connector End View (S049)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S049

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S049 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

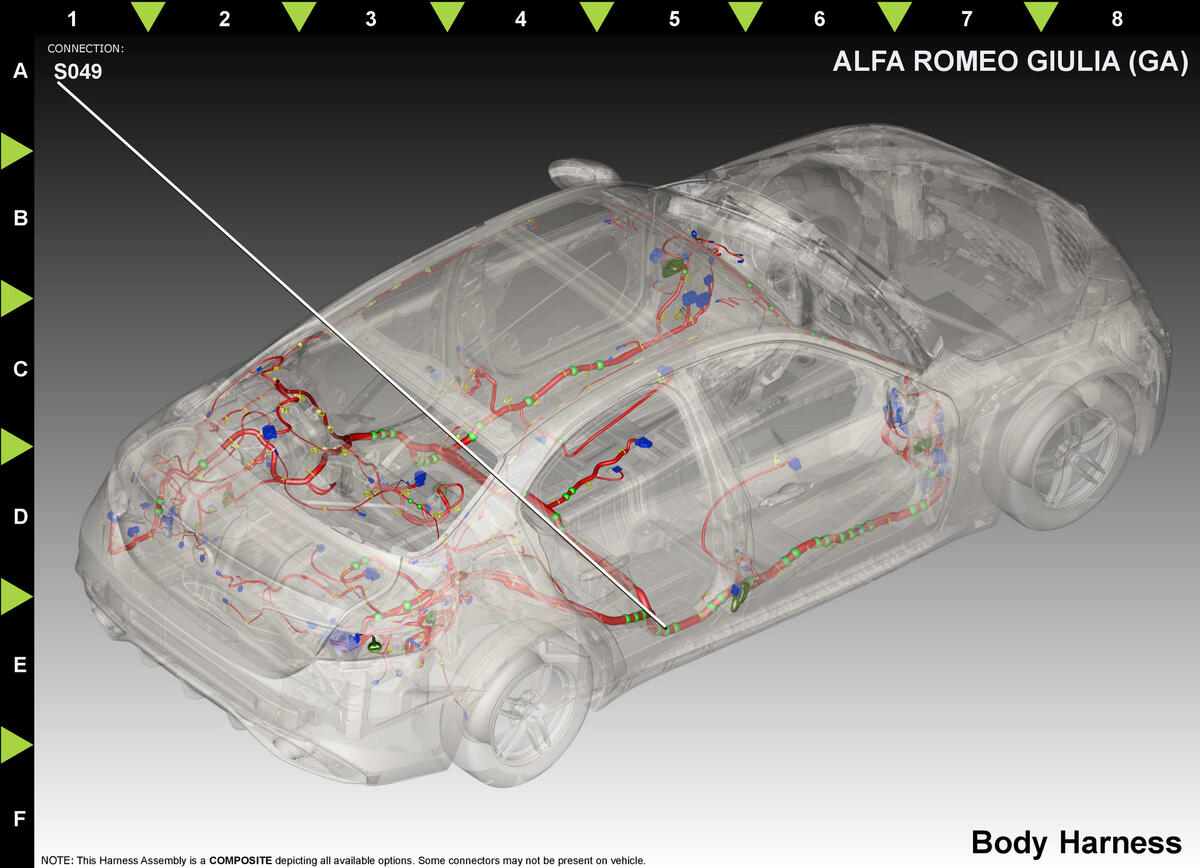

Fig 2: S049 Component Location (Standard)

GCWD1268106

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

M108

YE/GN

0.35

AMBIENT LIGHTING CONTROL

N/A

2

M108

YE/GN

0.35

AMBIENT LIGHTING CONTROL

N/A

3

M108

YE/GN

0.35

AMBIENT LIGHTING CONTROL

N/A

4

M108

YE/GN

0.35

AMBIENT LIGHTING CONTROL

N/A

5

M108

YE/GN

0.35

AMBIENT LIGHTING CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
