S054 (Standard) Connector End View (S054)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S054

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S054 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

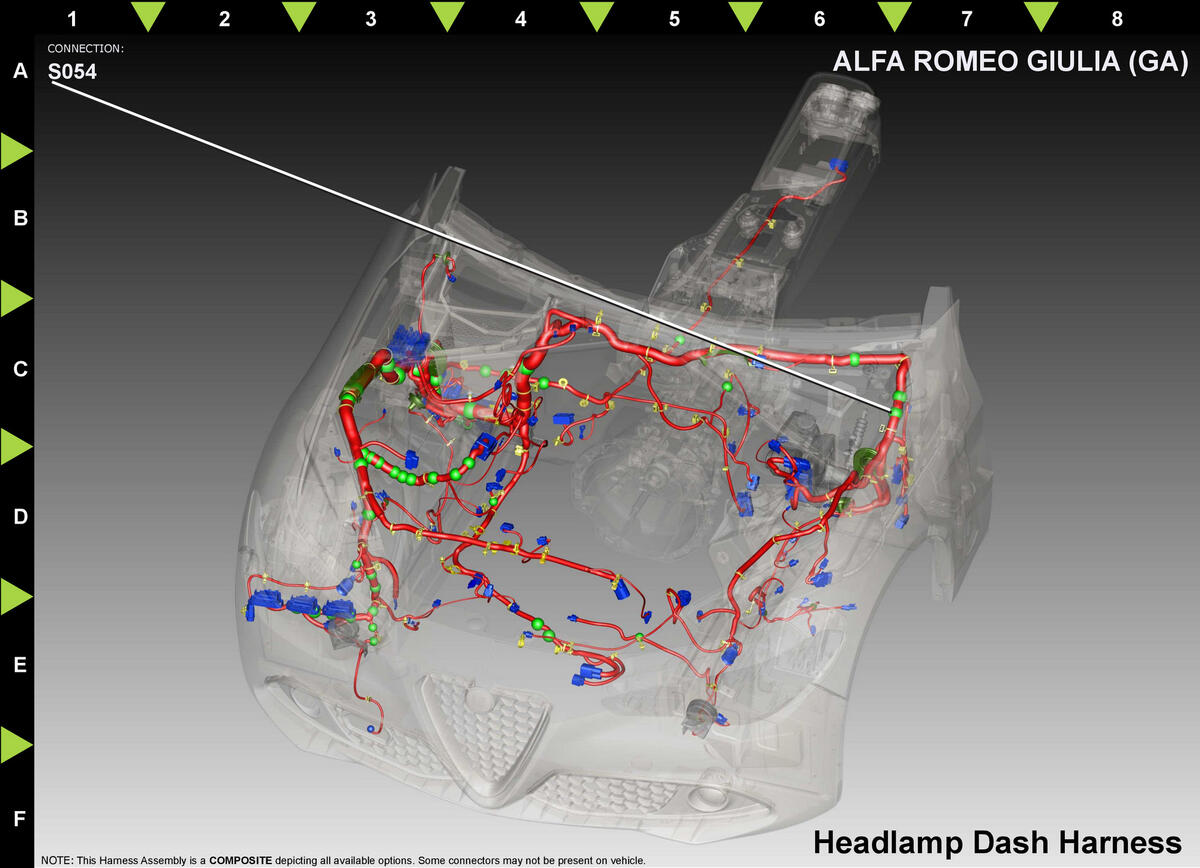

Fig 2: S054 Component Location (Standard)

GCWD1267843

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

T14

GY/WH

0.5

OUTPUT SPEED SIGNAL

LHD

2

T14

GY/WH

0.5

OUTPUT SPEED SIGNAL

N/A

3

T14

GY/WH

0.5

OUTPUT SPEED SIGNAL

N/A

⁽¹⁾	Pins not listed are not used for this connector
