S056 (Standard) Connector End View (S056)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S056

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S056 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

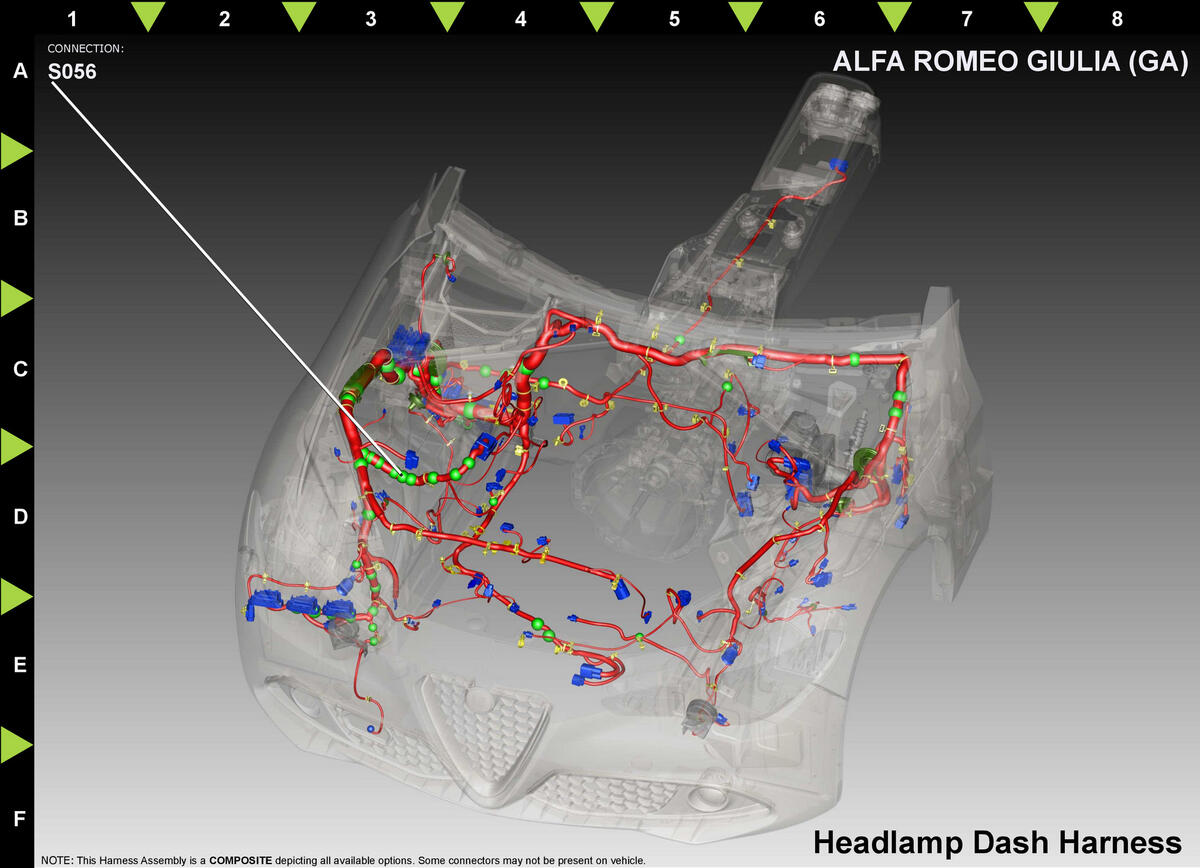

Fig 2: S056 Component Location (Standard)

GCWD1267846

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

T750

BN

2.5

STARTER RELAY OUTPUT

2.0L

2

T750

BN

2.5

STARTER RELAY OUTPUT

2.9L

3

T750

GY/YE

0.75

STARTER RELAY OUTPUT

2.0L

4

T750

BN

2.5

STARTER RELAY OUTPUT

2.0L/2.2L

5

T750

BN

2.5

STARTER RELAY OUTPUT

DIESEL

⁽¹⁾	Pins not listed are not used for this connector
