S082 (Standard) Connector End View (S082)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S082

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S082 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

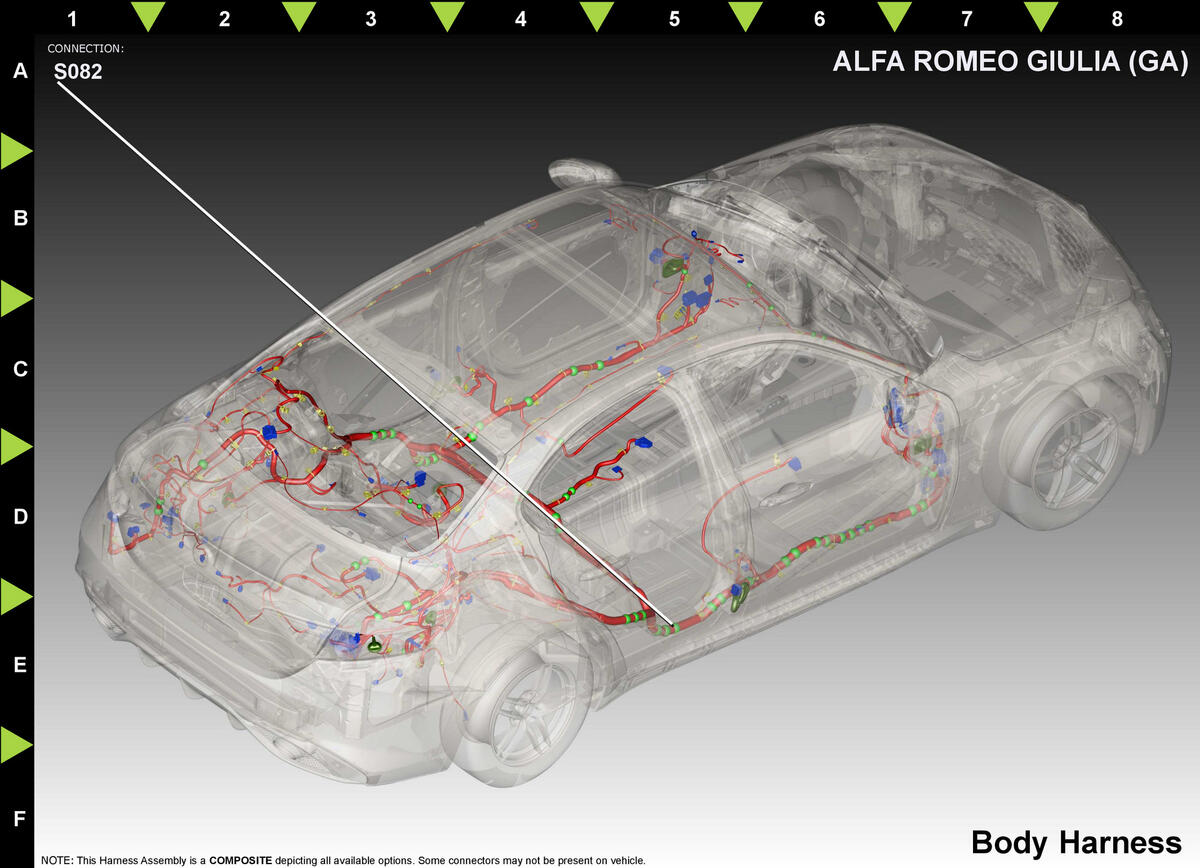

Fig 2: S082 Component Location (Standard)

GCWD1268168

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

F782

RD/GN

1.5

POWER SEAT RELAY OUTPUT

EXPORT PREMIUM

2

F782

RD/GN

1.5

POWER SEAT RELAY OUTPUT

EXPORT PREMIUM

2

A924

RD/GN

1.5

FUSED B(+)

PREMIUM

3

F782

RD/GN

1.5

POWER SEAT RELAY OUTPUT

EXPORT PREMIUM

3

A924

RD/GN

1.5

FUSED B(+)

PREMIUM

4

A924

RD/GY

1.5

FUSED B(+)

EXCEPT EXPORT PREMIUM

⁽¹⁾	Pins not listed are not used for this connector
