S121 (Standard) Connector End View (S121)

Harness-Family: Console_Center

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S121

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S121 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

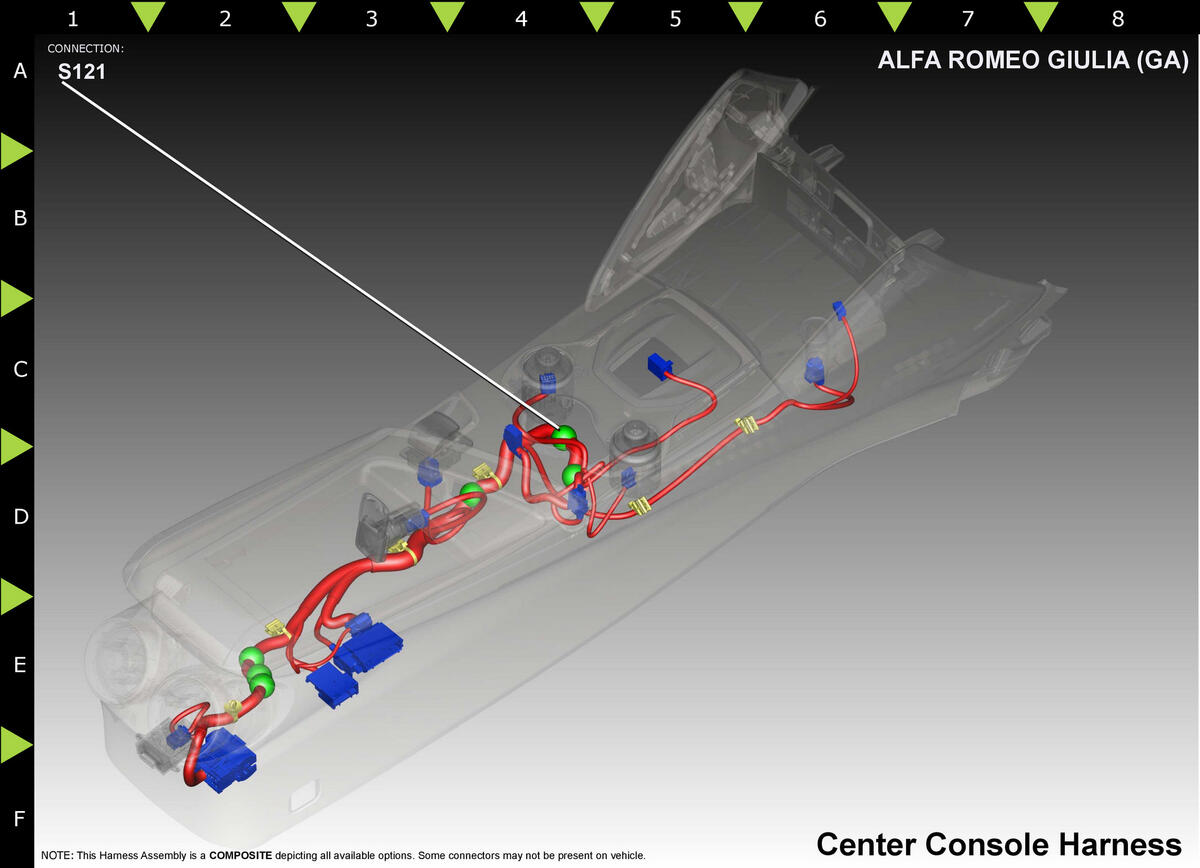

Fig 2: S121 Component Location (Standard)

GCWD1267243

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D158

WH

0.35

CAN IHS (-)

EU6

2

D158

WH

0.35

CAN IHS (-)

EU6

3

D158

WH

0.35

CAN IHS (-)

EU6

⁽¹⁾	Pins not listed are not used for this connector
