Front Door Switch

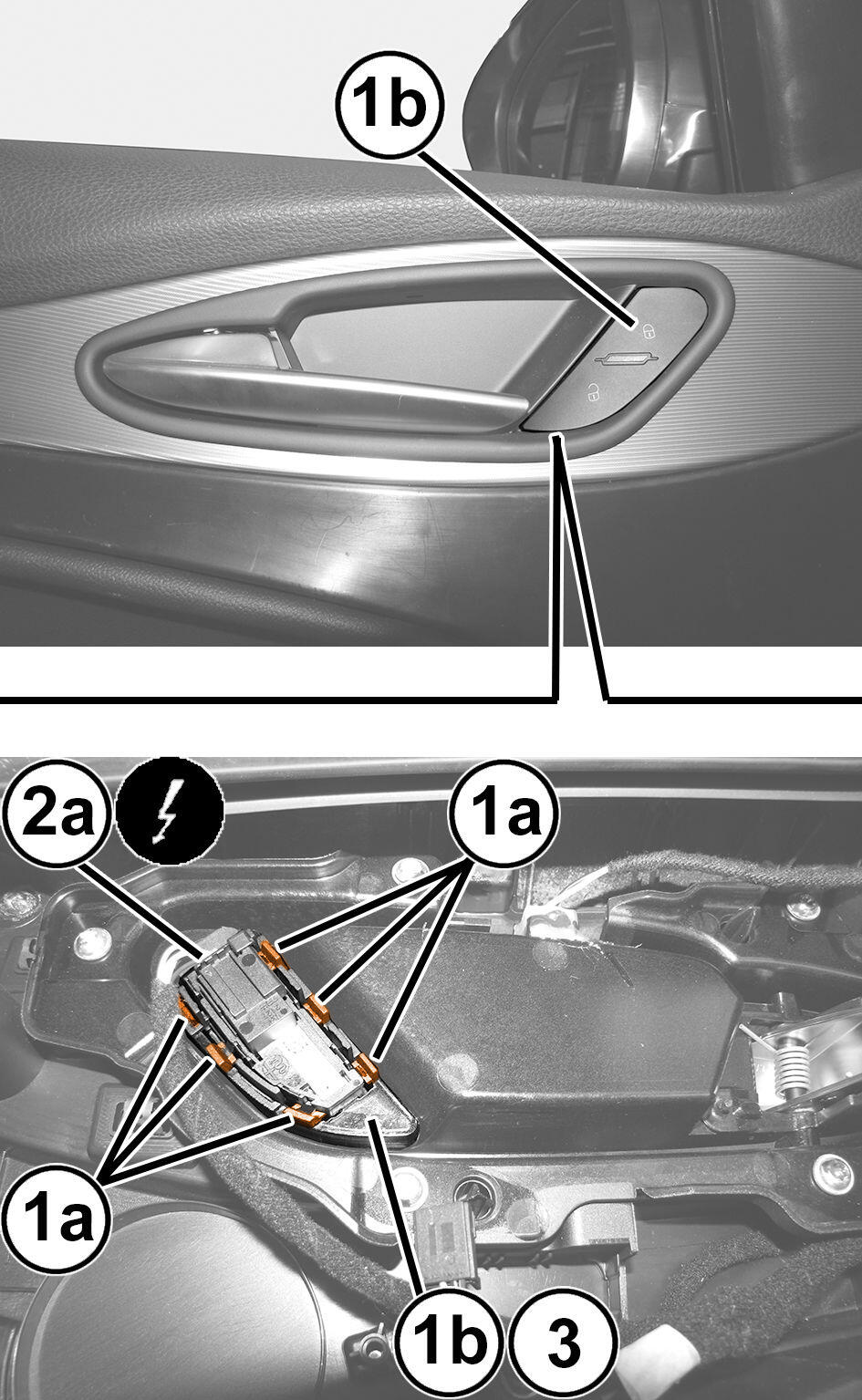

GC0193877Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Remove the trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION Refer to, PANEL, DOOR TRIM, UPPER, REMOVAL AND INSTALLATION Refer to, PANEL, DOOR TRIM, REFLECTOR, REMOVAL AND INSTALLATION .
  2. Working from the outside of the door, release the retainers (1a) and move the door lock switch (1b) towards the inside of the door.
  3. Disconnect the wire harness connector (2a) for the switch.
  4. Remove the door lock switch (1b).
GC0195245Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

  1. Connect the wire harness connector (1a) of the door lock switch (1b).
  2. Position the door lock switch (1b) and seat the retainers (2b) fully.
  3. Install the trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION Refer to, PANEL, DOOR TRIM, UPPER, REMOVAL AND INSTALLATION Refer to, PANEL, DOOR TRIM, REFLECTOR, REMOVAL AND INSTALLATION .
