Removal And Installation: Installation
NOTE:
If the alarm siren module has been replaced with a new unit, a diagnostic scan tool MUST be used to initialize and configure the new unit in the Body Control Module (BCM) before the Vehicle Theft Security System (VTSS) can operate as designed. Follow the programming steps outlined in the diagnostic scan tool for INITIALIZE SIREN under MISCELLANEOUS FUNCTIONS for the BODY CONTROL MODULE/BCM menu item as appropriate.

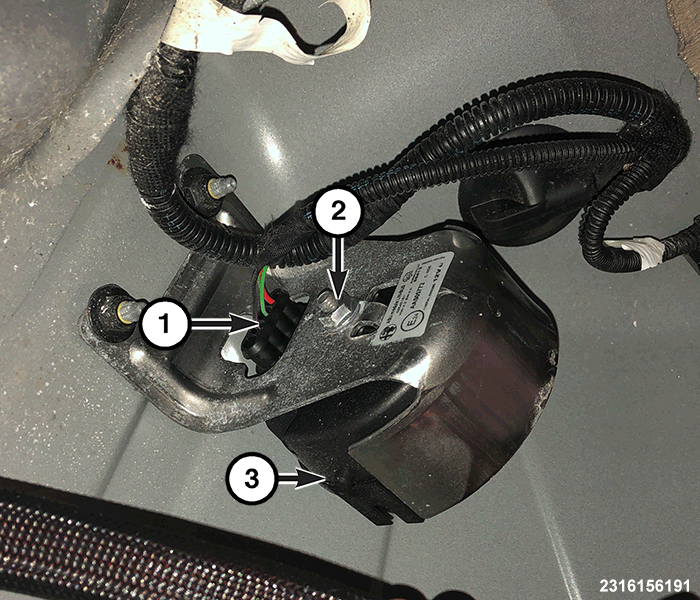

- Position the alarm siren module (3) in the mounting bracket.
- Install the siren nut (1) to the mounting bracket. Securely tighten the nut.
- Connect the body wire harness connector (1) to the siren (3).
- Install the right rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
