Rear Door Tweeter: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the rear door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL AND INSTALLATION or PANEL, REAR DOOR TRIM, REFLECTOR, REMOVAL AND INSTALLATION or PANEL, REAR DOOR TRIM, UPPER, REMOVAL AND INSTALLATION .

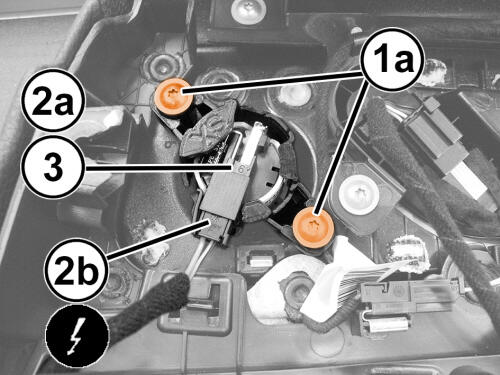

    GC0198587Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (2b).
  4. Remove the two tweeter screws (1a) and remove the tweeter (3).
