Removal And Installation - Rear Midrange Speaker: Installation

Courtesy of CHRYSLER GROUP, LLC

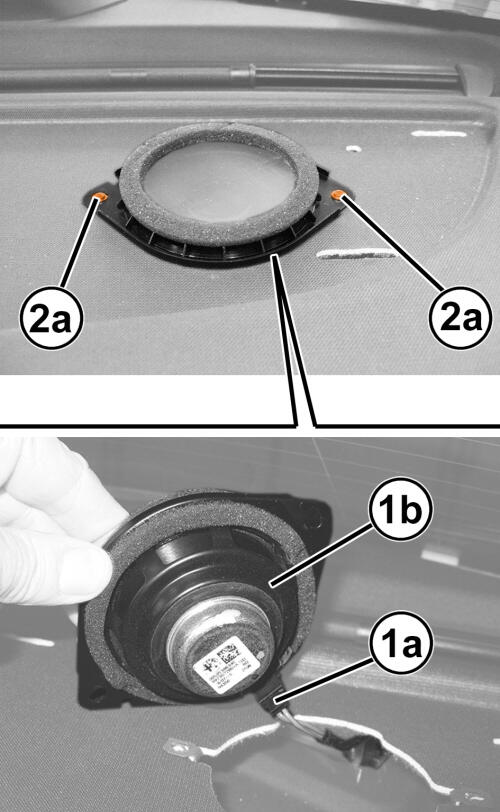

1. Connect the wire harness connector (1a).
2. Position the rear midrange speaker (1b) on the rear shelf.
3. Install the two rear midrange speaker screws (2a) and securely tighten.
4. Install midrange speaker cover.
5. Install the rear shelf panel. Refer to PANEL, REAR SHELF, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
