Park Assist System

PARK ASSIST SYSTEM

The parking assist system may be classified as follows:

• Four channel system
• Eight channel system

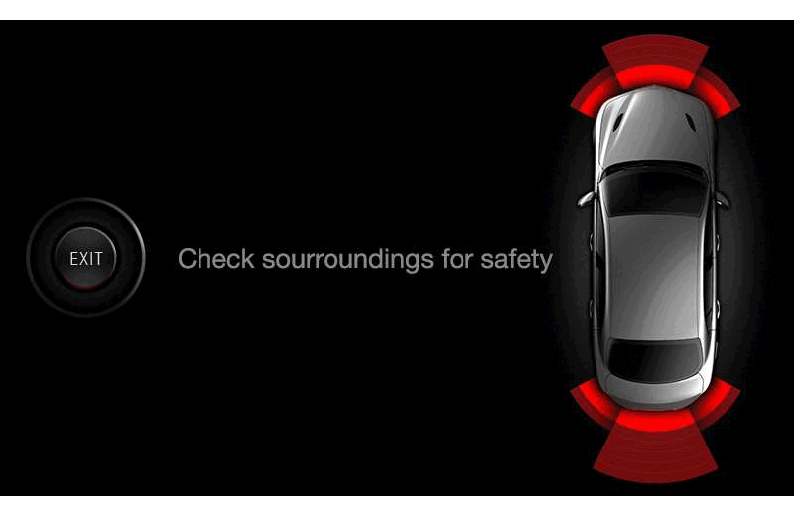

This vehicle may have four Park Assist Sensors (PAS) (four channel system) located in the rear fascia or eight PAS (eight channel system) located in the rear and front fascia of the vehicle. The PAS send ultrasound waves when the vehicle is travelling forwards or backwards at low speeds. The PAS send and receive ultrasonic waves from the echo coming back from any objects placed in the path of the vehicle. The control unit processes data from the PAS and performs a data triangulation to determine the relative distance, depending on the time elapsed between the output signal and the return signal. Optical obstacle approach warnings are provided on a 6.5 inch or 8 inch display to inform the operator of the vehicle that an object is nearby.

Courtesy of CHRYSLER GROUP, LLC

In case of system fault an audio signal is output and, when the gear is engaged, the display shows a dedicated message.

Courtesy of CHRYSLER GROUP, LLC

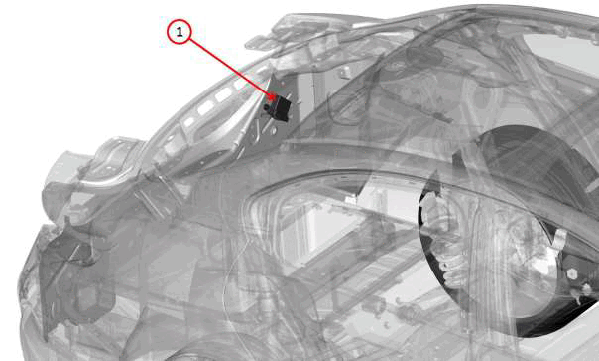

The Park Assist Module (PAM) is located in the trunk on the left-hand side.

Courtesy of CHRYSLER GROUP, LLC

PARK ASSIST MODULE

Four channel system

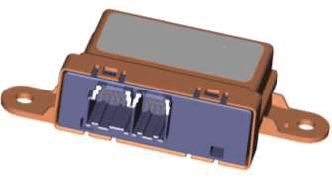

The PAM has the following characteristics:

• It receives power supply for its operation
• It provides power supply to the four PAS
• It receives signals from the four ultrasonic PAS
• It manages the presence of a possible trailer: it is configured to deactivate the rear sensors when a trailer is present (if equipped with trailer tow).
• It communicates and transmits data over the high-speed Controller Area Network (CAN) - Chassis (CH) data bus network.

Courtesy of CHRYSLER GROUP, LLC

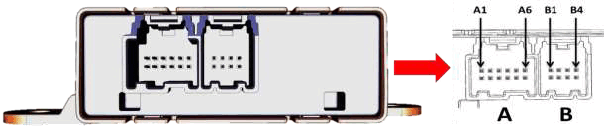

CONNECTOR A		CONNECTOR B
A1	Supply from ignition (+15)	B1	Right external sensor 8
A2	N/A	B2	Right internal sensor 9
A3	N/A	B3	Left internal sensor 10
A4	N/A	B4	Rear sensor power supply
A5	N/A	B5	Left external sensor 11
A6	CAN-CH High	B6	N/A
A7	Ground	B7	N/A
A8	N/A	B8	Sensor Ground
A9	N/A
A10	N/A
A11	N/A
A12	CAN-CH Low

Courtesy of CHRYSLER GROUP, LLC

Eight channel system

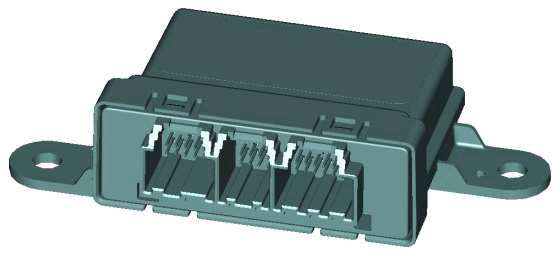

The semi-automatic PAM has the following characteristics:

• It receives power supply for its operation.
• It supplies power to the eight PAS.
• It receives signals from the eight ultrasound PAS.
• It manages the presence of a possible trailer: it is configured to deactivate the rear sensors when a trailer is present (if equipped with trailer tow).
• It communicates and transmits data over the high-speed CAN-CH data bus network.

Courtesy of CHRYSLER GROUP, LLC

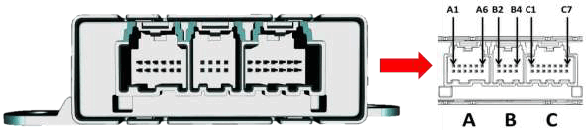

A1	Supply from ignition (+15)	B1	Right external sensor #8	C1	Front sensor power supply
A2	N/A	B2	Right internal sensor #9	C2	N/A
A3	N/A	B3	Left internal sensor #10	C3	N/A
A4	N/A	B4	Left Rear Power Supply	C4	Left external sensor #2
A5	n.c	B5	Left external sensor #11	C5	Left internal sensor #3
A6	CAN-CH High	B6	N/A	C6	N/A
A7	Ground	B7	N/A	C7	N/A
A8	N/A	B8	Sensor ground	C8	Ground
A9	N/A	C9	N/A
A10	N/A	C10	N/A
A11	N/A	C11	Right external sensor #5
A12	CAN-CH Low	C12	Right internal sensor #4
		C13	N/A
		C14	N/A

Courtesy of CHRYSLER GROUP, LLC

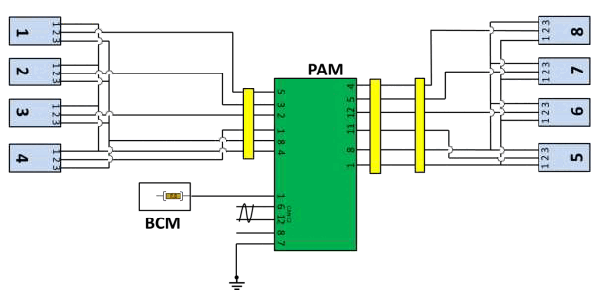

1	Left Front External Sensor #2
2	Left Front Sensor #3
3	Right Front Sensor #6
4	Right Front External Sensor #5
5	Left Rear External Sensor #11
6	Left Rear Sensor #10
7	Right Rear Sensor #9
8	Right Rear External Sensor #8
Body Control Module (BCM)

PARK ASSIST SENSORS

The ultrasound sensor technology is based on the use of piezoelectric transducers which are able to transmit and to receive. The transducer generates and emits an ultrasonic wave that is reflected by an obstacle and is retransmitted to the transducer. The ultrasound sensor is an active type sensor which, in addition to the transducer, contains electronics able to drive, amplify and filter the received signal and to perform an analogue/digital conversion to communicate with the PAM.

Courtesy of CHRYSLER GROUP, LLC

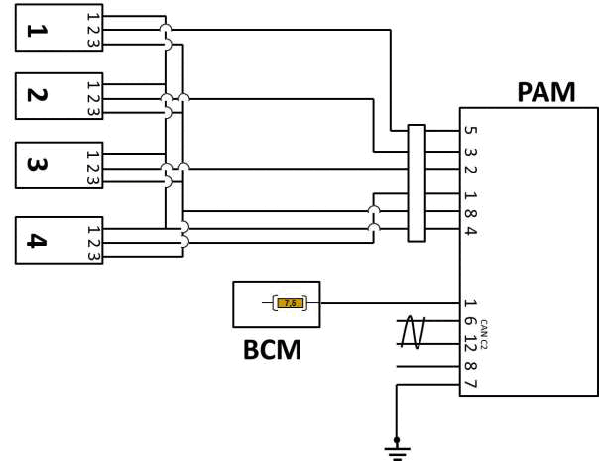

There are four ultrasonic PAS located in the rear fascia.

Courtesy of CHRYSLER GROUP, LLC

PAM
1	Left Rear Sensor
2	Center Rear Sensor
3	Center Rear Sensor
4	Right Rear Sensor
BCM

Courtesy of CHRYSLER GROUP, LLC

There are four PAS located on the front fascia when the vehicle is equipped with the eight channel system.

Courtesy of CHRYSLER GROUP, LLC

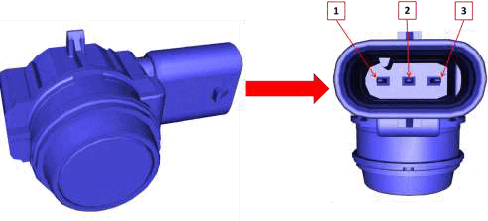

Sensor pin out:

• Terminal 1 - Power supply (V)
• Terminal 2 - Signal
• Terminal 3 - Ground.

PARK ASSIST SENSOR
Current consumption	< 5 mA
Operating temperature	-40°C to 85°C
Ultrasound frequency	48 kHz

Courtesy of CHRYSLER GROUP, LLC

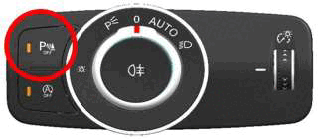

PARK ASSIST SWITCH

The vehicle operator may deactivate the front PAS obstacle detection function by pressing the switch on the headlight switch control panel which is located to the left of the steering column.
