Forward Facing Camera Module
If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.
REMOVAL
- Disconnect and isolate the negative battery cable.
- Remove the interior rear view mirror. Refer to MIRROR, REARVIEW, REMOVAL AND INSTALLATION
.

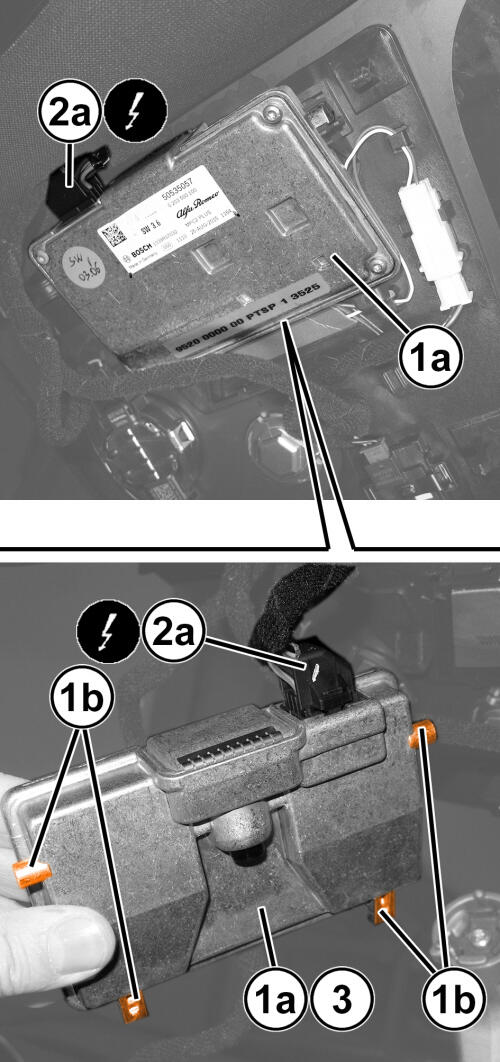

- Remove the Forward Facing Camera Module (FFCM) (1a) by releasing its pins (1b) from the support retainers.
- Disconnect the wire harness connector (2a) from the FFCM.
INSTALLATION
- Inspect the FFCM and the wire harness connector integrity.
- Inspect and make sure the windshield surface is clean where the FFCM (1a) will be mounted.

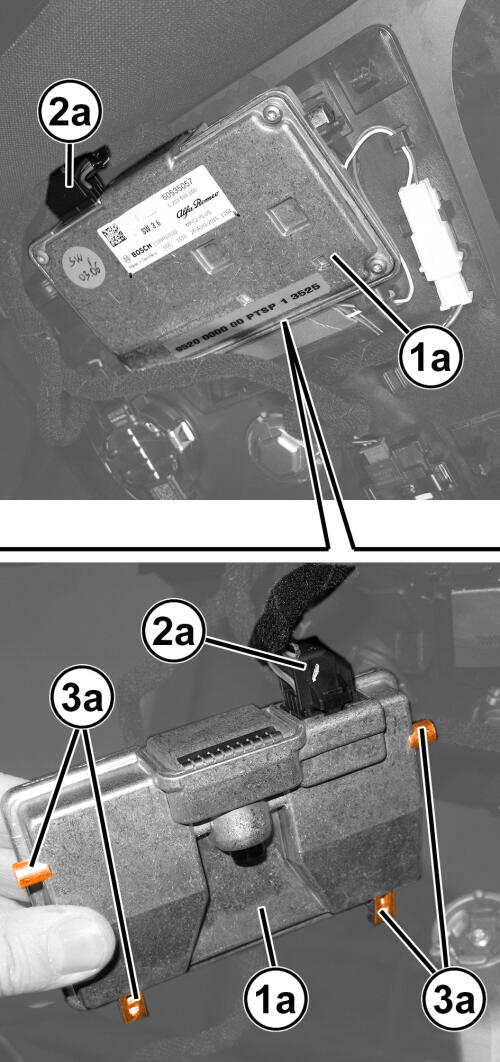

- Connect the wire harness connector (2a) to the FFCM (1a).
- Position the FFCM (1a) and secure to the support retaining pins (3a). Verify that the FFCM (1a) is properly attached.
- Install the rear view mirror. Refer to MIRROR, REARVIEW, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available). This will confirm that the module is updated to the latest applicable software level.
- Perform the FFCM calibration procedure. Refer to MODULE, FORWARD FACING CAMERA (FFCM), MODULE PROGRAMMING .
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
