QUADRIFOGLIO - Carbon Ceramic: Installation
- Position the tension strut in place on the vehicle.
- Install a NEW tension strut to crossmember nut and bolt. Do not tighten at this time.
- Install the tension strut ball joint into the knuckle and install a NEW
tension strut to knuckle mounting nut, Do not tighten at this time.

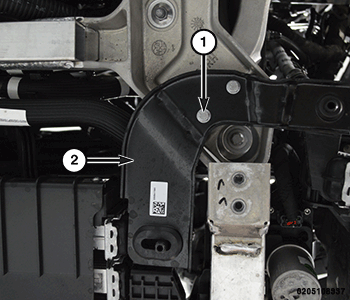

- Position the radiator and install the lower radiator mounting bolts and tighten securely.

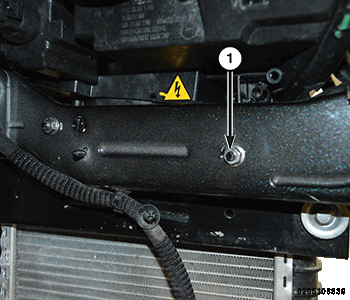

- Install the upper radiator support mounting nuts (1) and tighten securely.
- Install the wheel studs in the hub and bearing, Do not tighten.

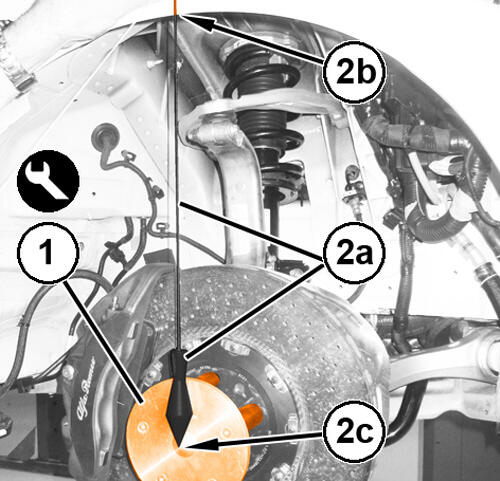

- Mount the special tool (special tool #2000025100, Measuring Tool, Wheel Centering) (1) on the wheel stud heads.
- Using an appropriate plump-bob (2a) determine and mark the stud curvature (2b) that corresponds to the wheel axle (2c).
- Position a suitable jack under the knuckle.

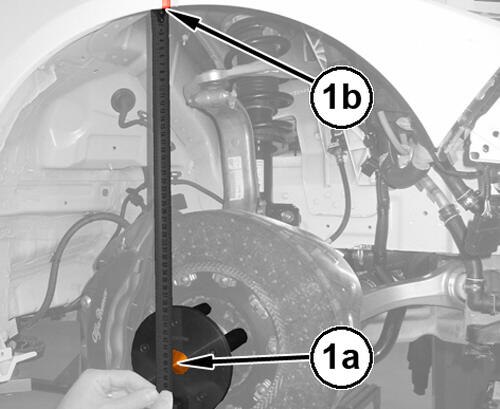

- Raise the knuckle up until the height 373.5 mm between the wheel center (1a) and the corresponding mark on the wheel arch (1b) is reached.
- Tighten the tension strut to crossmember mounting bolt to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
- Tighten the tension strut to knuckle mounting nut to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
- Remove the jack from under the knuckle and remove the special tool and wheel studs from the hub and bearing.

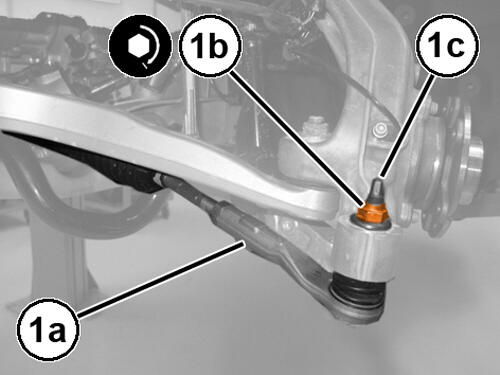

- Install the outer tie rod end to the knuckle and install a NEW
outer tie rod end to knuckle mounting nut and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS
.
- Position the disc brake guard (1b), and install the three disc brake guard to knuckle mounting bolts (1a) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the front brake rotor. Refer to ROTOR, BRAKE, REMOVAL AND INSTALLATION .
- Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
