Removal And Installation: Base: Removal

NOTE:

Connect the scan tool to the vehicle, select Antilock Brake System (ABS) in the "miscellaneous functions" select "Electric Park Brake (EPB)", then start the "MAINTENANCE MODE".

Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
Remove the brake reservoir cap and install special tool (special tool #2000001400, Cap, Master Cylinder).

Courtesy of CHRYSLER GROUP, LLC

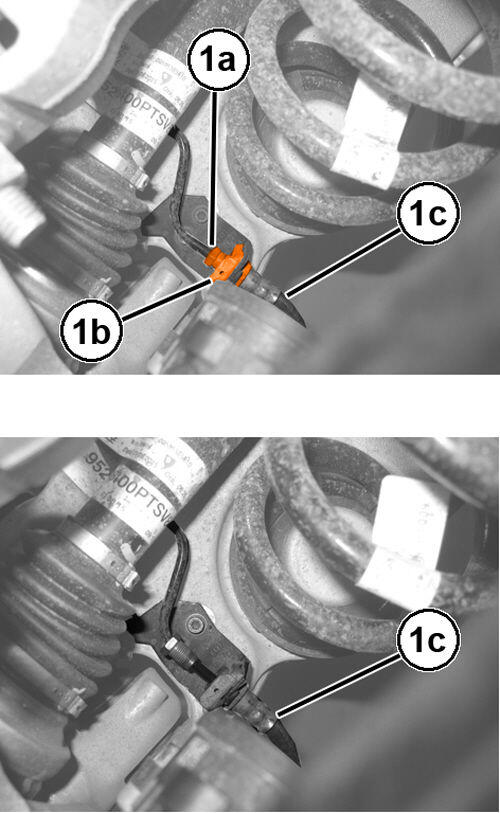

Remove the brake tube nut (1a), remove the retaining clip (1b) and disconnect the brake hose (1c) from the bracket.

Courtesy of CHRYSLER GROUP, LLC

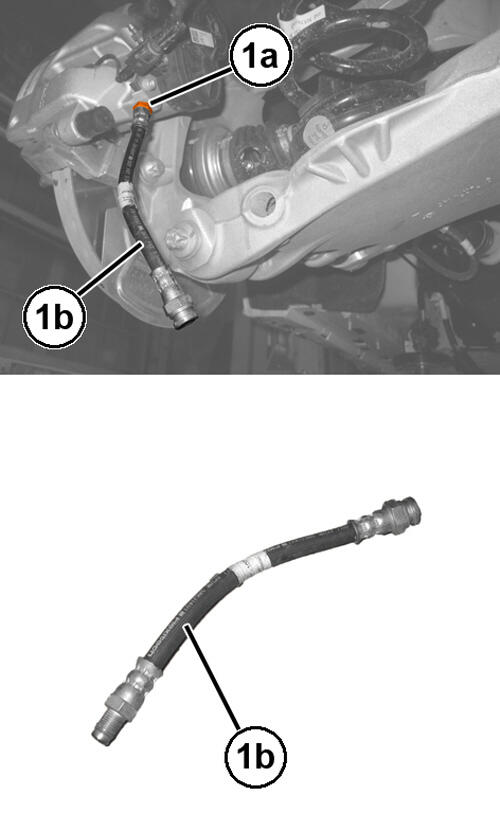

Loosen and remove the brake hose (1b) from the brake caliper.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the brake pad wear sensor electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC

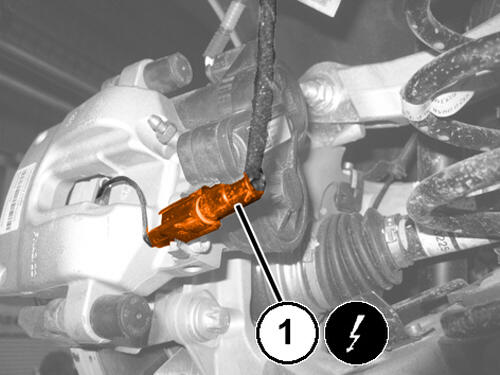

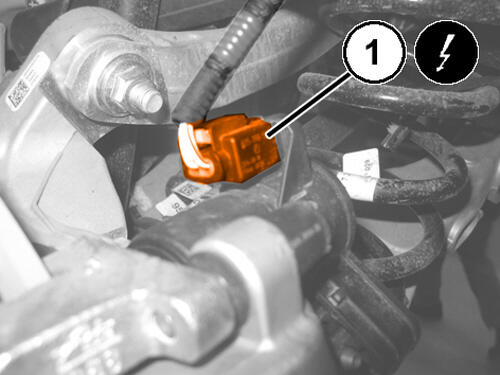

Disconnect the electric parking brake actuator electrical connector (1) on the rear brake caliper.

Courtesy of CHRYSLER GROUP, LLC

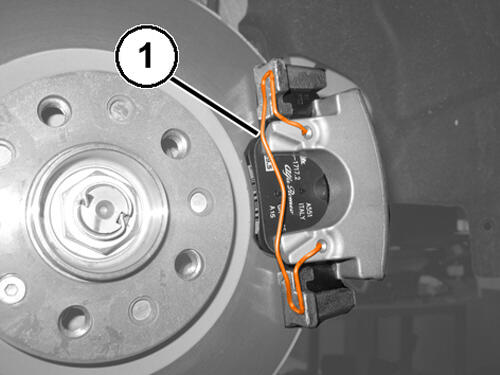

Remove the rear brake caliper retaining clip (1).

Courtesy of CHRYSLER GROUP, LLC

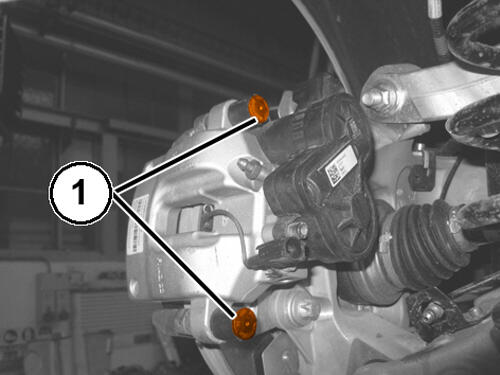

Remove the protective caps (1) from the rear brake caliper mounting bolts.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Use caution when removing the rear brake caliper to not damage the rear brake pads in the bracket.

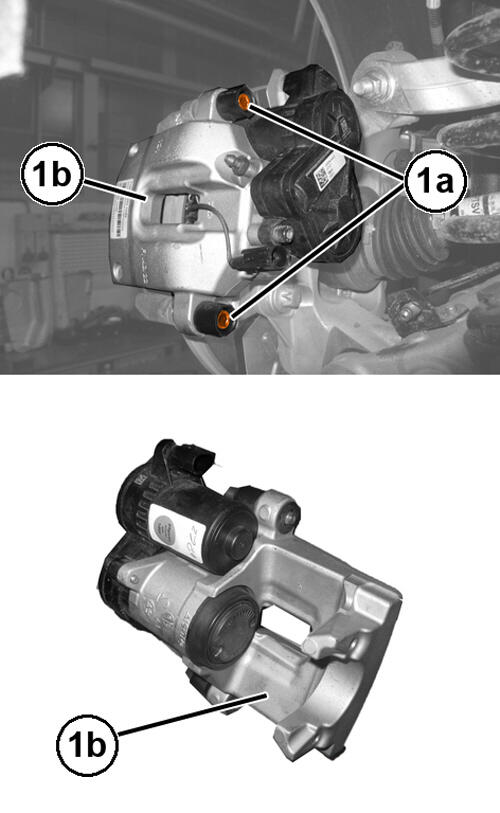

Remove the brake caliper bolts (1a) and remove the rear brake caliper (1b) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

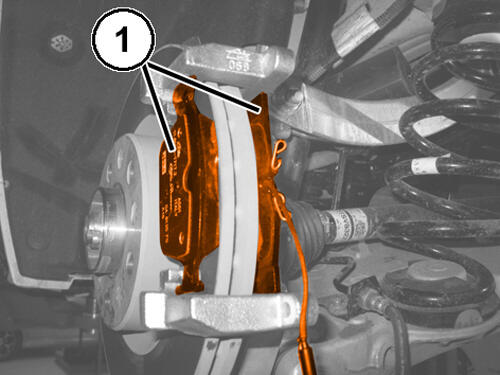

If necessary remove the inner and outer brake pads (1).

Courtesy of CHRYSLER GROUP, LLC

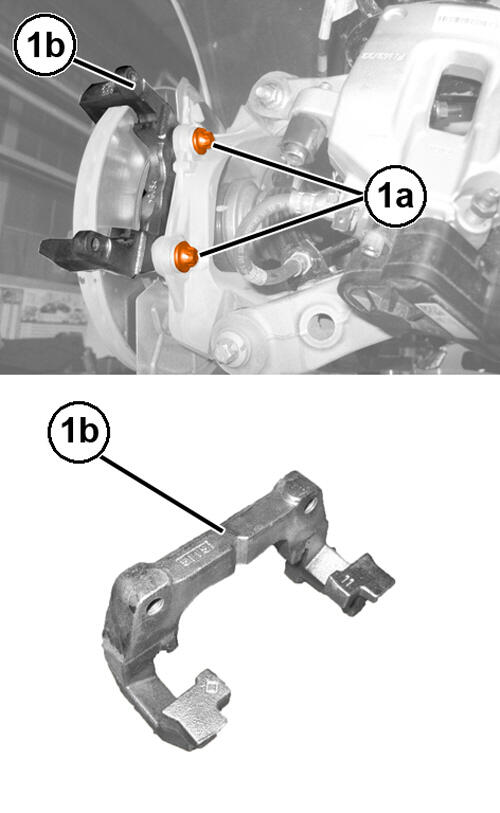

Remove the brake caliper adapter bracket to knuckle mounting bolts (1a) and remove the bracket (1b) from the vehicle.
