QUADRIFOGLIO - Carbon Ceramic: Installation

NOTE:

Installation process is the same for both sides of the vehicle.

NOTE:

If the front brake pads need to be replaced, connect the scan tool to the Data Link Connector (DLC), select "ABS" and start the following procedures: Brake Pads

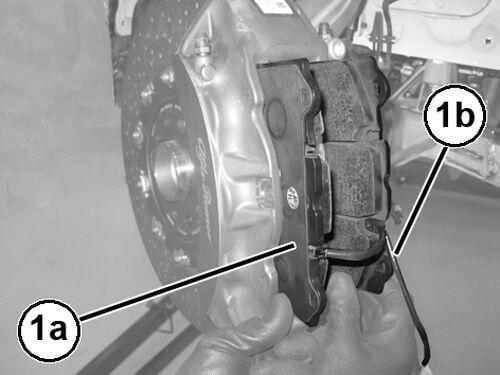

GC0194857Courtesy of CHRYSLER GROUP, LLC
  1. Install the new brake pads (1a) in their seats, taking care that the pad wear indicator wiring connectors (1b) are facing down.
    GC0207782Courtesy of CHRYSLER GROUP, LLC
  2. Install the tensioner (1b) and tighten the mounting screw (1a) to the proper specification. Refer to TORQUE SPECIFICATIONS  .

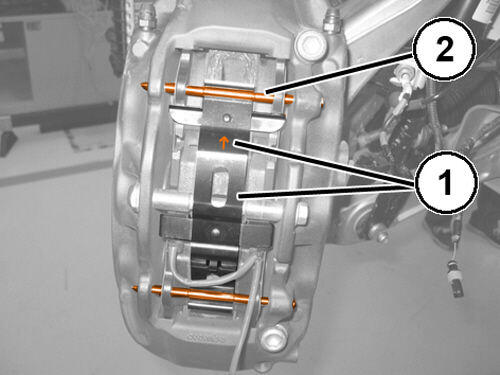

    GC0194596Courtesy of CHRYSLER GROUP, LLC
  3. Install the brake pad anti-rattlespring (1) with the arrow shown in illustration pointing upwards.
  4. Install the brake pad pins (2).
    GC0193117Courtesy of CHRYSLER GROUP, LLC
  5. Connect the brake pad wear sensor electrical connector (1) and engage the electrical connection on the retaining bracket.
  6. Pump brake pedal several times to set pads to caliper and brake rotor.
  7. Check the brake fluid level in the reservoir and top off, if necessary.
  8. Securely tighten the brake fluid reservoir cap on the brake fluid reservoir.
  9. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  10. Connect the negative battery cable.
  11. Perform the brake system bleed. Refer to STANDARD PROCEDURE .
  12. Remove the support and lower the vehicle.
