Removal And Installation: Base: Installation
NOTE:
Carefully clean the pad seat area using suitable materials and products (e.g. a moist cloth).
NOTE:
Do not use products which could damage rubber parts.
NOTE:
Check that there is no damage to the pistons or the dust boots.
NOTE:
The brake pad wear sensor must be installed on the inboard side of the rotor.
- Install the NEW
brake pads.

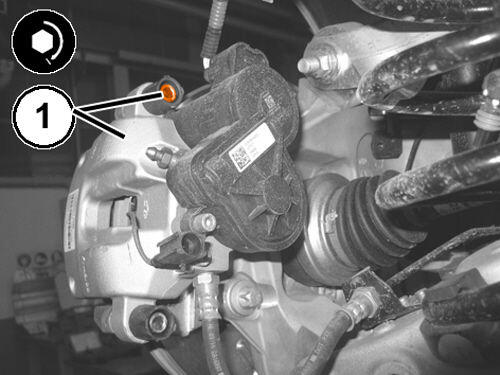

- Install the brake caliper, engaging the brake pads in their housings and tighten the upper caliper to caliper adapter bracket mounting bolt to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the protective cap to the rear brake caliper upper mounting bolt.
- Engage the clip securing the brake caliper to the bracket.
- Connect the electric parking brake (EPB) actuator electrical harness connector on the rear brake caliper.
- Connect the brake pad wear sensor electrical connector.
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
- Pump brake pedal several times to set pads to caliper and brake rotor.
- Remove the supports and lower the vehicle.
- Connect the scan tool to the vehicle, select ABS in the "miscellaneous functions" select "electric park brake" then start the "ASSEMBLY CHECK" procedure.
- Perform the brake system bleed. Refer to STANDARD PROCEDURE .
