Removal And Installation: Installation

Check that the brake pedal is not damaged.

Courtesy of CHRYSLER GROUP, LLC

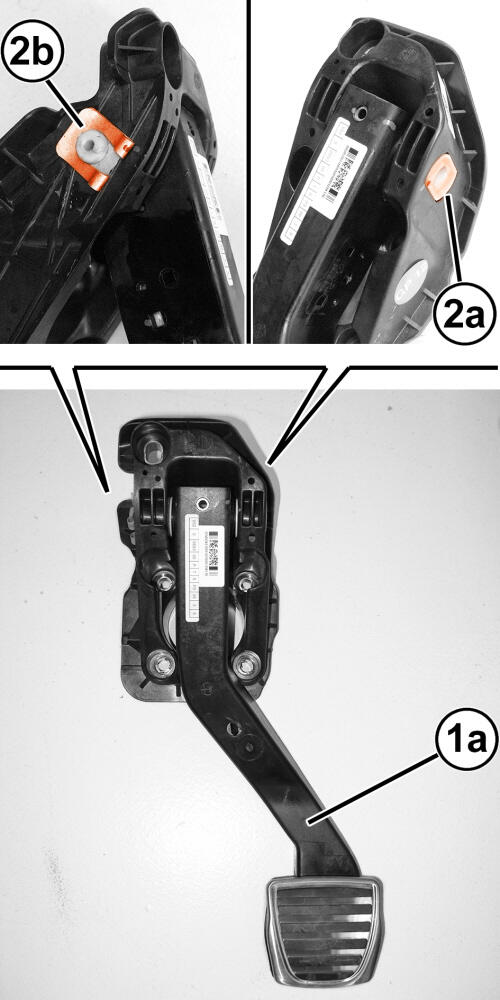

If removed, position the brake pedal (1a); if needed, lubricate the bushings with appropriate grease.
Insert the pin (2a) in its housing and apply the retaining clip (2b).
NOTE:
When fitting the pedal, turn the IBS control unit pushrod towards the special housing under the brake pedal.

Courtesy of CHRYSLER GROUP, LLC

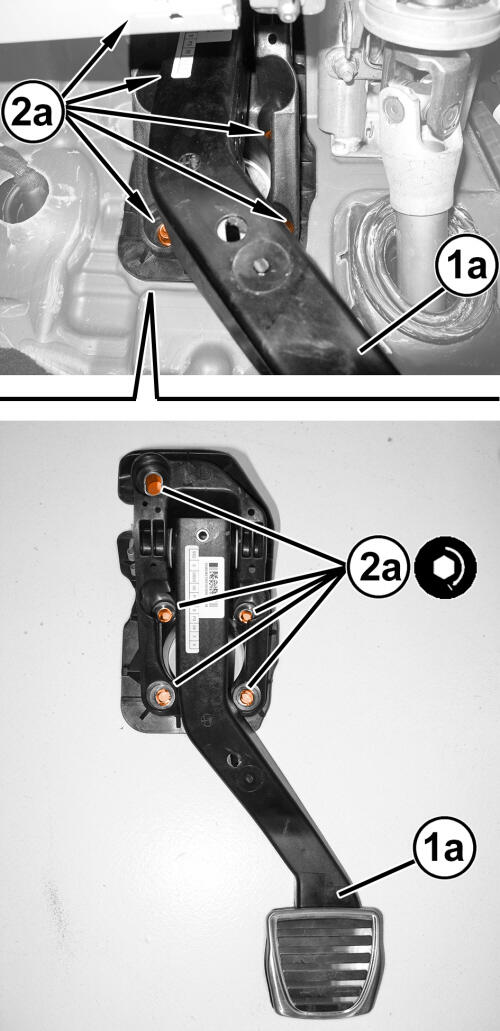

Position the pedal unit in place in the vehicle.
NOTE:
Tighten the mounting nuts (2a) in a criss cross pattern.
Install NEW pedal assembly to Integrated Control Unit (ICU) mounting nuts and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Lubricate the retaining device and IBS control unit pushrod with suitable grease.

NOTE:
Position the cup before inserting the retaining device in the brake pedal.
Position the cup.

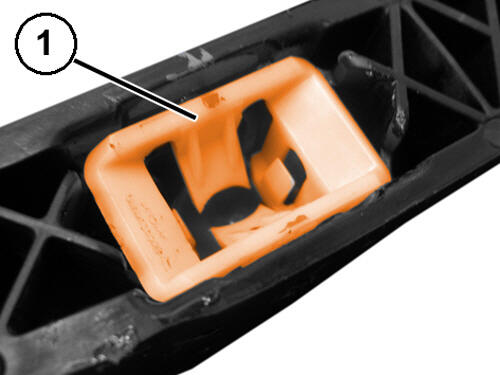

Insert the NEW retaining device in the brake pedal (1), engaging the side clips.
Connect the IBS control unit pushrod to the brake pedal by pressing it until the pushrod engages the retaining device.
Install the right front floor outlet. Refer to OUTLET, AIR, REMOVAL AND INSTALLATION .
Connect the negative battery cable.
