Front QUADRIFOGLIO - Carbon Ceramic: Installation

Courtesy of CHRYSLER GROUP, LLC

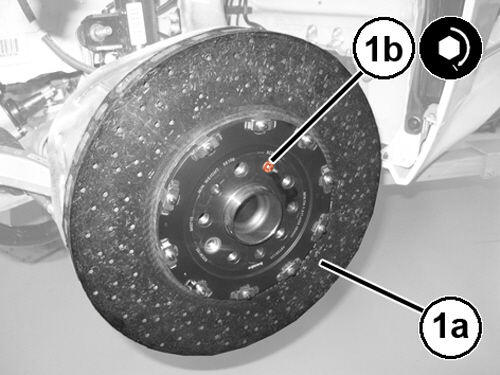

1. Install the front brake rotor (1a) on the hub in its housing.
2. Install the Brake Rotor to Hub Bolt - Front (1b) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
3. Install the front brake caliper. Refer to CALIPER, DISC BRAKE, FRONT, REMOVAL AND INSTALLATION CALIPER, DISC BRAKE, REAR, REMOVAL AND INSTALLATION .
4. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
5. Remove the support and lower the vehicle.
