Rear Base: Installation
NOTE:
Clean the hub face to remove any dirt or corrosion where the rotor mounts.

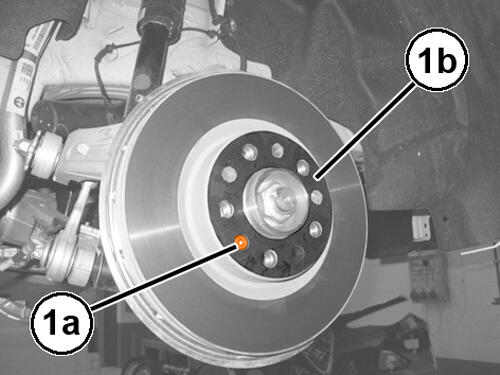

- Install the brake rotor and install the Brake Rotor to Hub Bolt - Rear bolt and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS
.

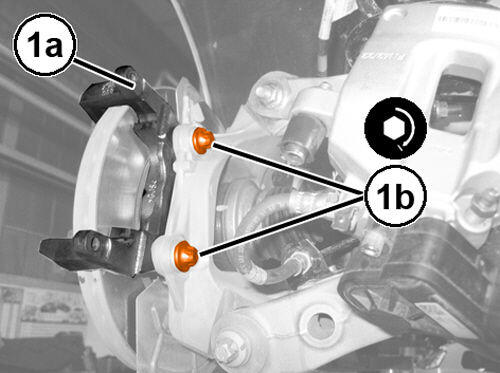

- Install the brake caliper adapter bracket (1a) and install the brake caliper adapter bracket to knuckle mounting bolts (1b) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS
.NOTE:
The brake pad and wear sensor must be fitted from inside the wheel.
- Install the inner and outer brake pads onto to caliper adapter bracket.

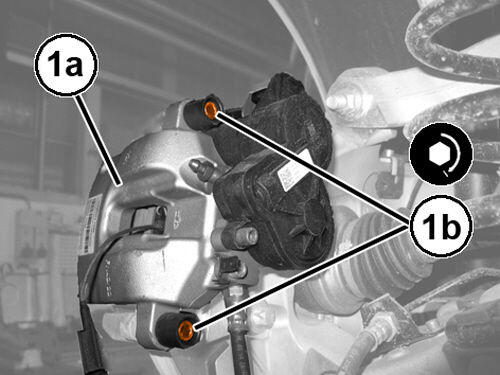

- Install the rear brake caliper (1a), complete with bake lines, and tighten the caliper to caliper adapter bracket mounting bolts (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the protection caps of the above screws.
- Engage the clip securing the brake caliper to the bracket.
- Connect the electric parking brake (EPB) actuator electrical harness connection on the rear brake caliper.
- Connect the brake pad wear sensor electrical harness connection.
- Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Remove the supports and lower the vehicle.
- Connect the negative battery cable.
- Connect the scan tool to the Data Link Connector (DLC), go to "ABS" control unit in the "miscellaneous functions" menu, go to the "Electric Park Brake (EPB)" and perform the "ASSEMBLY CHECK" procedure.
