Removal And Installation: Installation

NOTE:

Connect the diagnosis equipment to the car diagnosis socket, go to ABS control unit in the "miscellaneous functions" menu, go to the "ELECTRIC HAND BRAKE MANAGEMENT" and start the procedure: Reset internal dynamic Brembo counter.

Place the pads back and spring back in their housings.

Courtesy of CHRYSLER GROUP, LLC

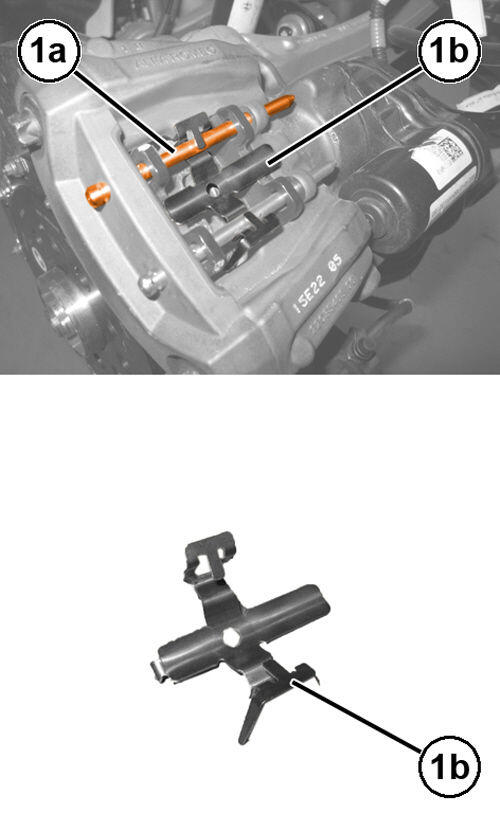

Insert one of the pins (1a) in the specific housings on the caliper, in the pads and in the spring (1b). Push the pin until it abuts completely.
Insert the remaining pin (1a) by applying pressure on the spring.

Courtesy of CHRYSLER GROUP, LLC

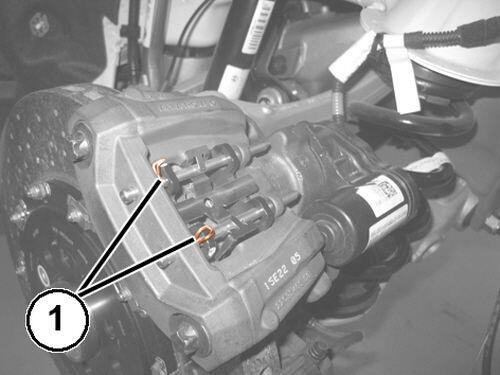

Fit the safety split pins (1) in the specific holes pins.
Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
Remove supports and lower the vehicle.
NOTE:
Connect the scan tool, go to ABS, in the "miscellaneous functions" go to "EPB" and start the procedure: Reset internal dynamic Brembo counter.
