Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the bin storage. Refer to BIN, STORAGE, REMOVAL AND INSTALLATION .

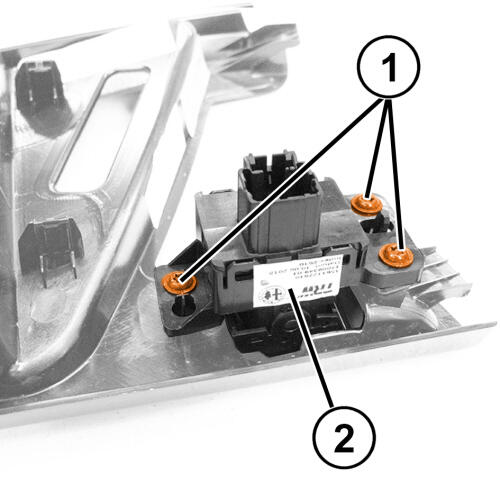

    GC0198160Courtesy of CHRYSLER GROUP, LLC
  3. Remove the Electric Parking Brake (EPB) switch (2) mounting bolts (1).
  4. Remove the EPB switch from the trim panel.
