Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
    GC0198191Courtesy of CHRYSLER GROUP, LLC

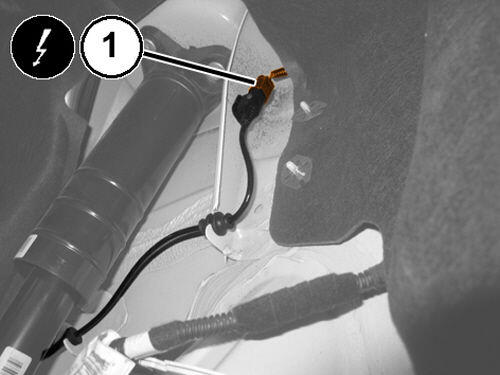

  4. Release the wiring from intermediate retainers and disconnect the electrical harness connector (1) for the rear wheel speed sensor.
    GC0080388Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Keep the rear wheel speed sensor away from magnetic fields.

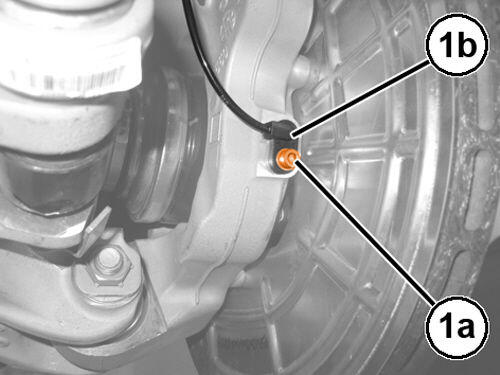

  5. Remove the mounting bolt (1a) and remove the rear wheel speed sensor (1b) from the stub axle strut.
