Removal Of Engine And Transmission From The Suspension CROSSMEMBER

Courtesy of CHRYSLER GROUP, LLC

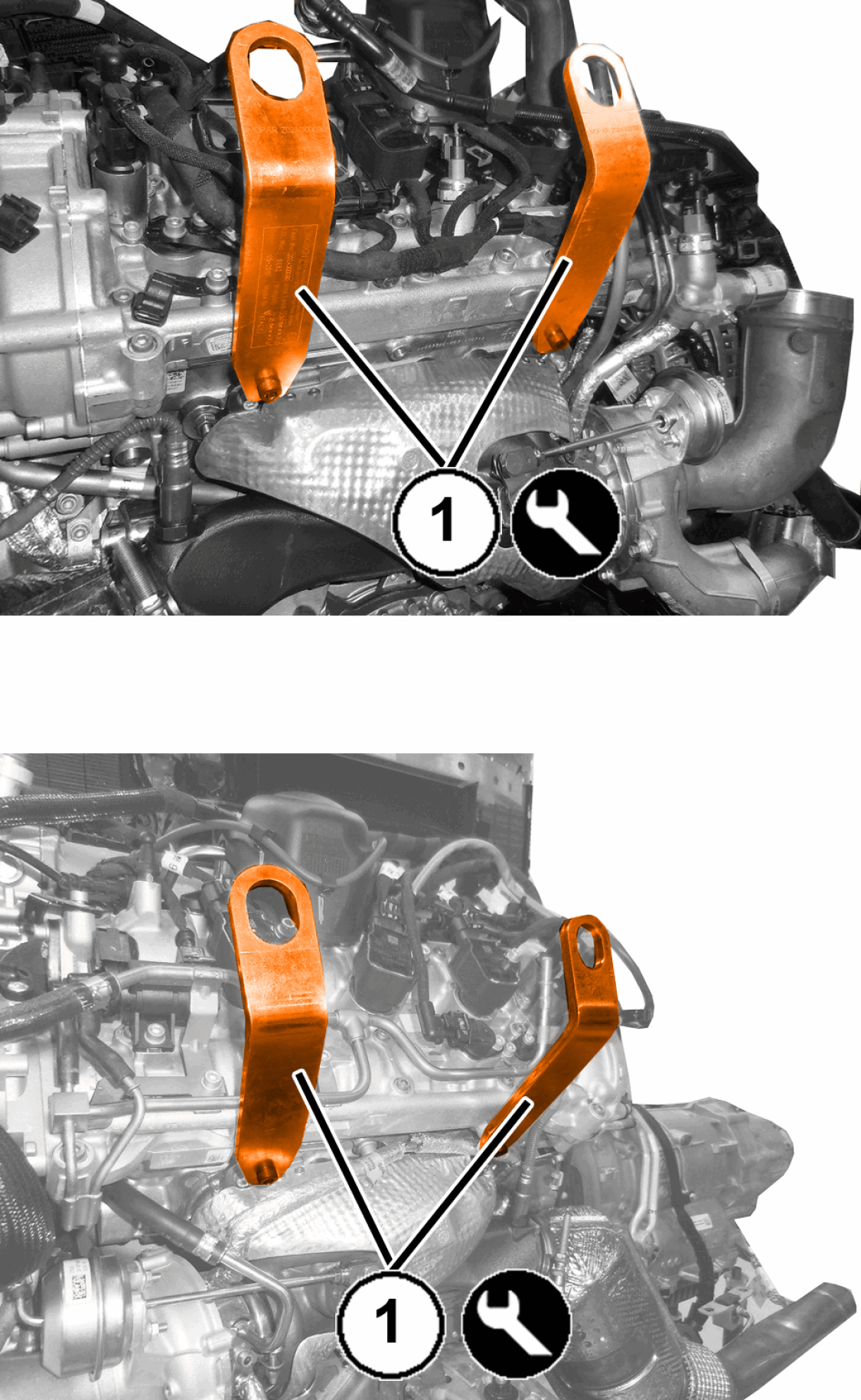

1. Install the (special tool #2024300090, Brackets, Engine Lifting) (1) to the left and right cylinder heads and support the hydraulic lift.

   Courtesy of CHRYSLER GROUP, LLC

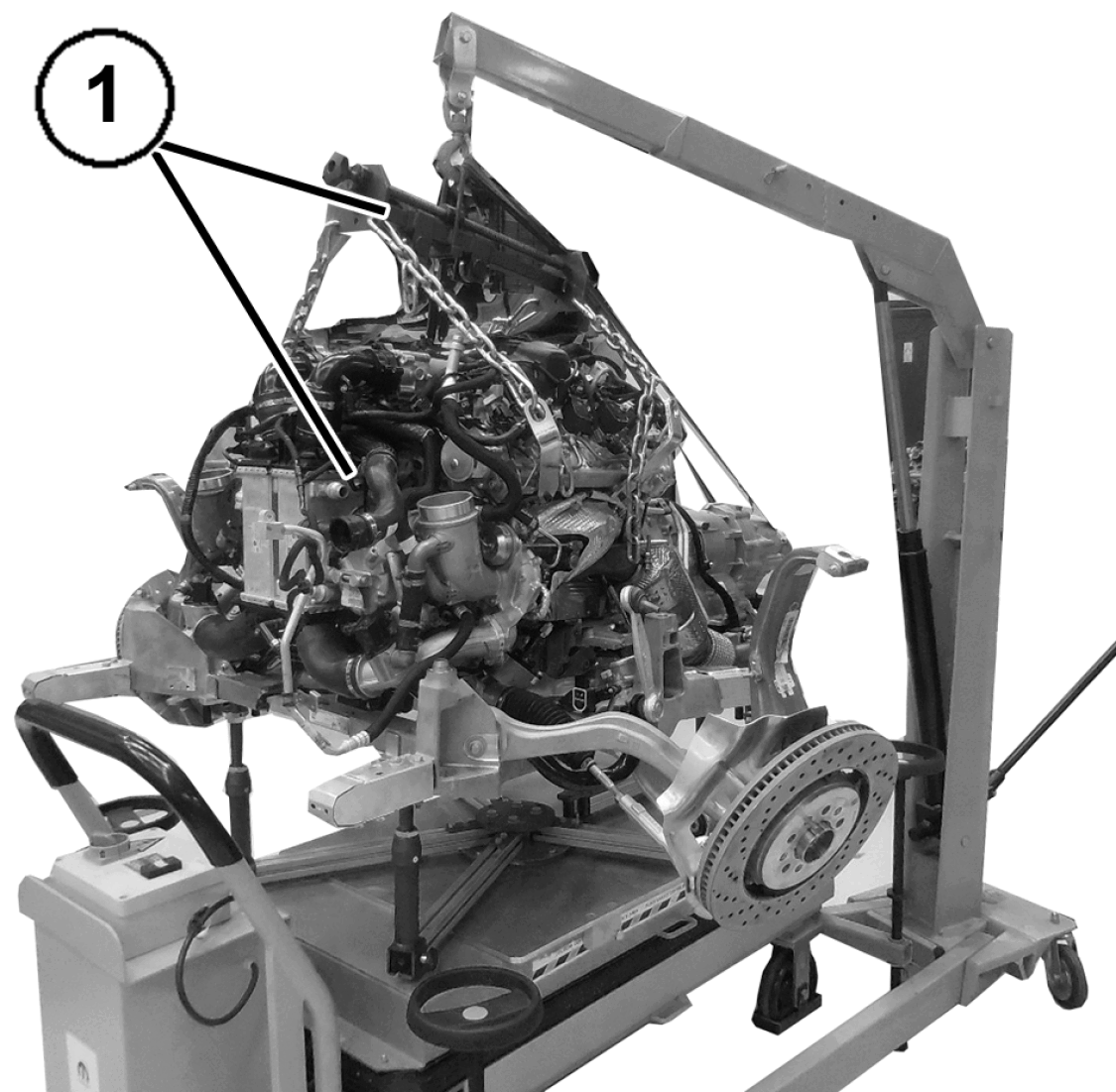

2. Support the powertrain with a suitable hydraulic lift (1).

   Courtesy of CHRYSLER GROUP, LLC

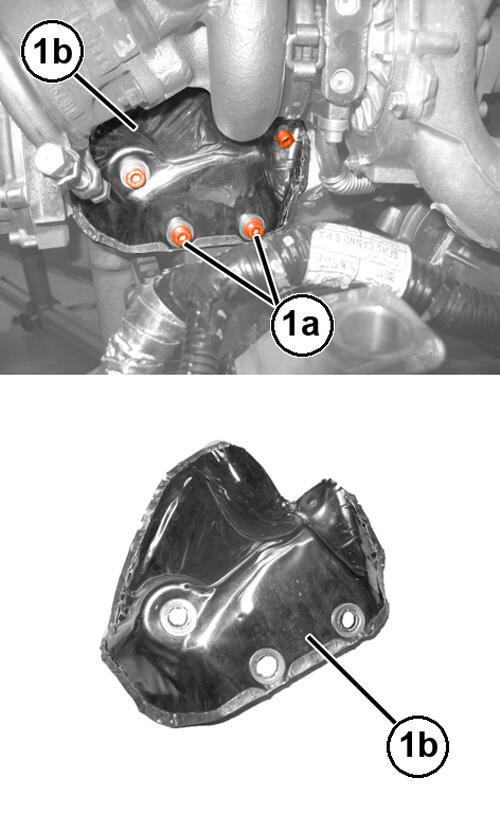

3. Remove the bolts (1a) and the flexible mount heat shield (1b).

   Courtesy of CHRYSLER GROUP, LLC

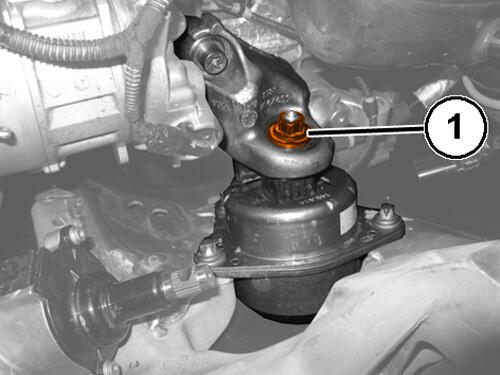

4. Remove the nut (1) securing the engine mount bracket to the right engine mount insulator.
5. Repeat for the left side.
6. Lift the powertrain assembly to disengage it from the suspension crossmember and place it on a suitable support.
7. Remove the tools used for lifting the power unit.

INSTALLATION

1. Using the engine using the mounting tools and a hydraulic lift, raise the powertrain assembly and position it on the front suspension crossmember taking care to engage the flexible mounting pins into their respective holes on the rigid engine mounts.

   Courtesy of CHRYSLER GROUP, LLC

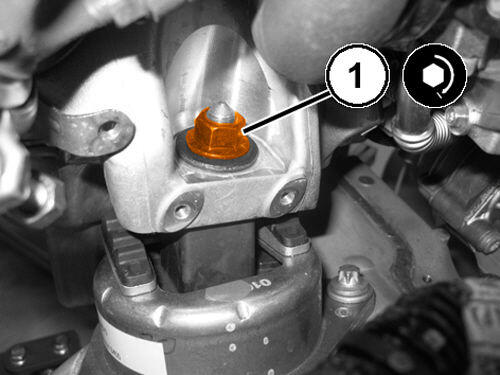

2. Tighten the nut (1) securing the engine mount bracket to the right engine mount insulator to the proper specification. Refer to ENGINE MOUNTS  .
3. Install the engine mount heat shield and securely tighten the bolts.
4. Repeat for the left side.
5. Remove the tools used for lifting the power unit.
