Air Cleaner Inlet Tube

WARNING: This page is about a different variant/trim than selected.

REMOVAL

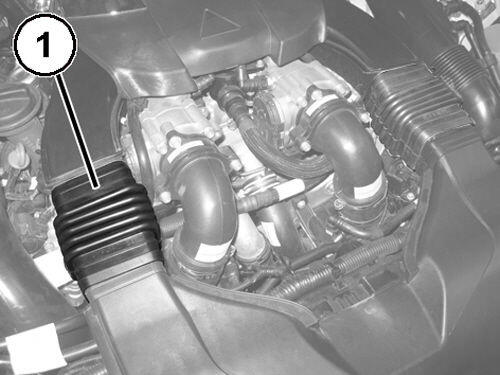

GC0198277Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the right or left flexible air cleaner inlet tubes (1).

INSTALLATION

  1. Connect the left or right flexible air cleaner inlet tubes.
