Cylinder Head: Inspection
WARNING: This page is about a different variant/trim than selected.
NOTE:

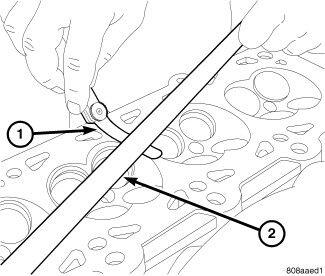

Typical Cylinder Head Shown in illustration.
- Check the cylinder head for warping with a straight edge (2) and a feeler gauge (1).
- The cylinder head must be flat within specification. Refer to SPECIFICATIONS .
- Remove any carbon or varnish deposits from inside of valve guides with a reliable guide cleaner.
