Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
When removing the front crankshaft oil seal, be careful not to damage its seat.

NOTE:
The front crankshaft oil seal is ruined during the removal operation, therefore it must always be changed.

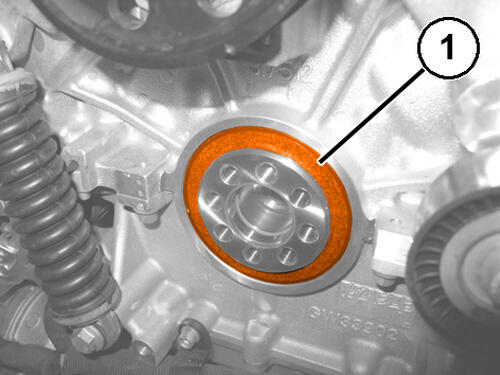

Carefully remove the front crankshaft oil seal (1).

INSTALLATION

Using the (special tool #2030100090, Installer, Crankshaft Oil Seal), Install the NEW front crankshaft oil seal.
Install the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION .
