Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
    GC0198520Courtesy of CHRYSLER GROUP, LLC
  2. Using the (special tool #2024200090, Damper, Rotating Tool) tool (1a), remove the bolts (1b), the washer and the vibration damper (1c).

INSTALLATION

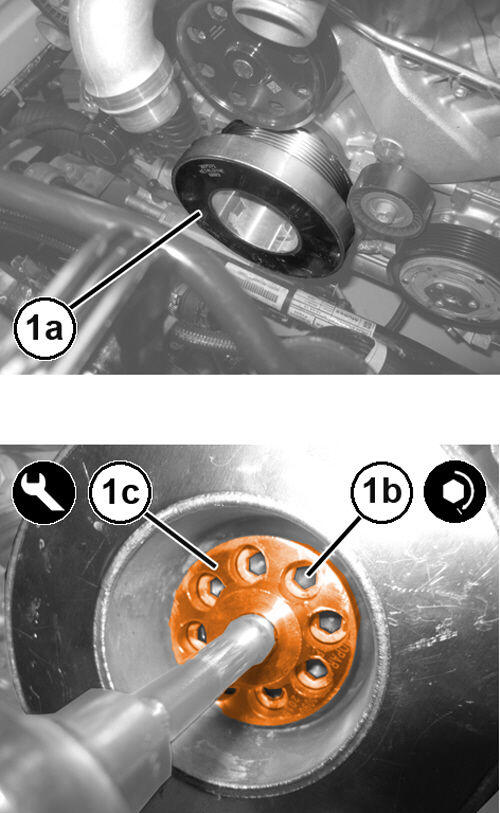

GC0198420Courtesy of CHRYSLER GROUP, LLC
  1. Install the vibration damper onto the crankshaft (1a) complete with washer. Using the (special tool #2024200090, Damper, Rotating Tool) tool (1c) tighten the NEW  bolts (1b) to the proper specification. Refer to FRONT ENGINE  .
  2. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
