Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
    GC0198333Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolts (1a) and the engine mount (1b).

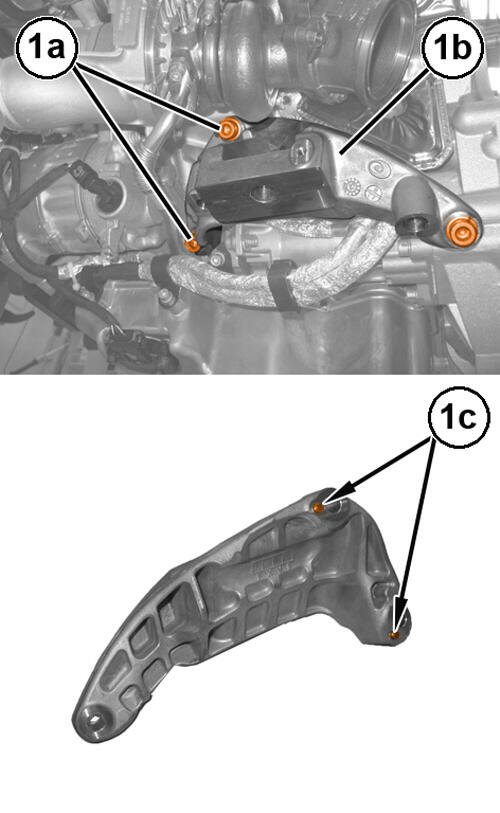

    GC0207808Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (1a) and the engine mount bracket (1b), complete with centering bushings (1c).

INSTALLATION

  1. Install the engine mount bracket (1a) and tighten the bolts (1b) to the proper specification. Refer to ENGINE MOUNT  .
    GC0198426Courtesy of CHRYSLER GROUP, LLC
  2. Install engine mount (1a) and tighten the bolts (1b) to the proper specification. Refer to ENGINE MOUNT  .
  3. Install the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
