Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

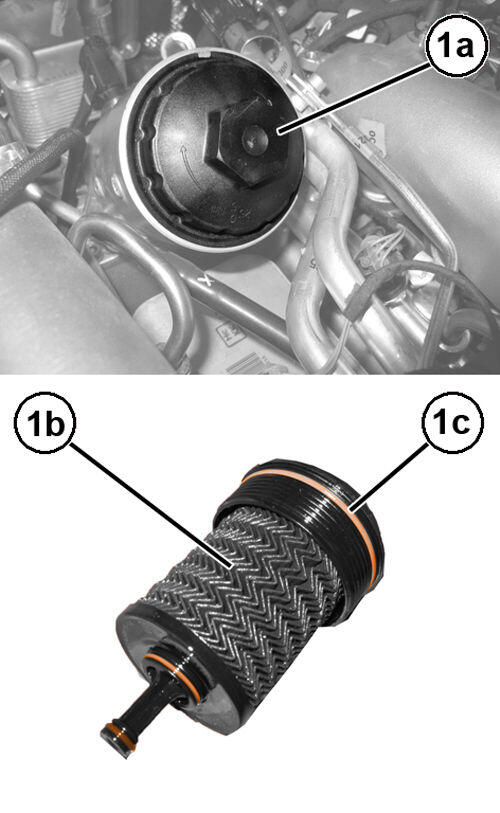

Remove the cover (1a) complete with engine oil filter (1b) and O-rings (1c).

Courtesy of CHRYSLER GROUP, LLC
Prepare a suitable container to retrieve the engine oil which could be released.

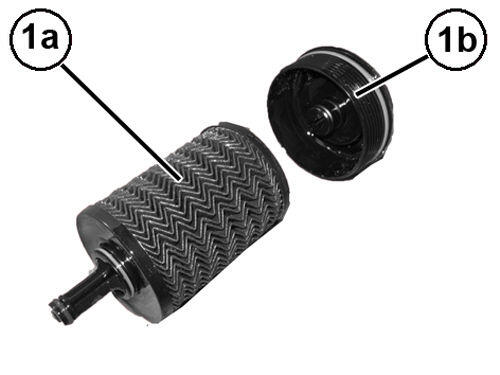

Disconnect the engine oil filter (1a) from the cover (1b).

INSTALLATION

GC0194103

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Apply a coat of engine oil on the cover thread and on the O-ring.

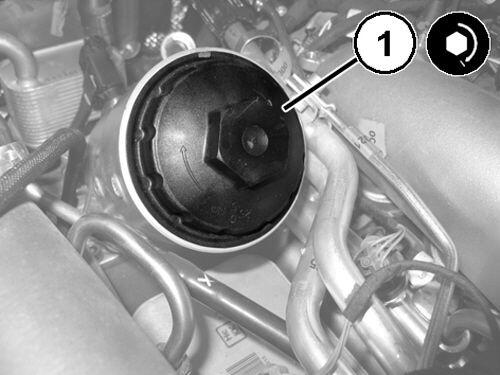

Install a NEW O-rings and a NEW engine oil filter into the oil filter cover (1).
Install the engine oil filter cover (1) and tighten to the proper specification. Refer to LUBRICATION .
Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
Fill the engine with the recommended engine oil. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
