Removal And Installation

1. Disconnect and isolate the negative battery cable.
2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

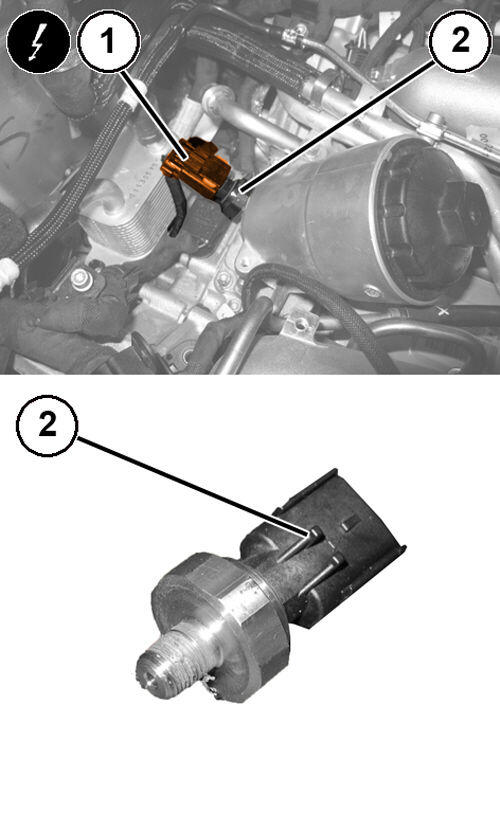

3. Disconnect the engine oil pressure sensor wire harness connector (1).
4. Remove the engine oil pressure sensor (2).
5. Remove the residues of sealant from the engine oil pressure sensor housing.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

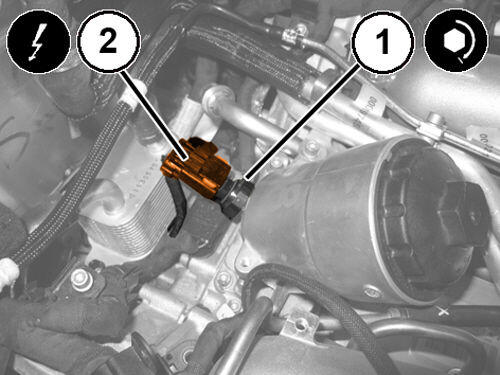

1. Install the NEW  engine oil pressure sensor (1) and tighten to the proper specification. Refer to LUBRICATION  .
2. Connect the engine oil pressure sensor wire harness connector (2).
3. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
