Right Turbocharger Lubrication Deactivation Circuit Oil Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

REMOVAL

Disconnect and isolate the negative battery cable.
Remove the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

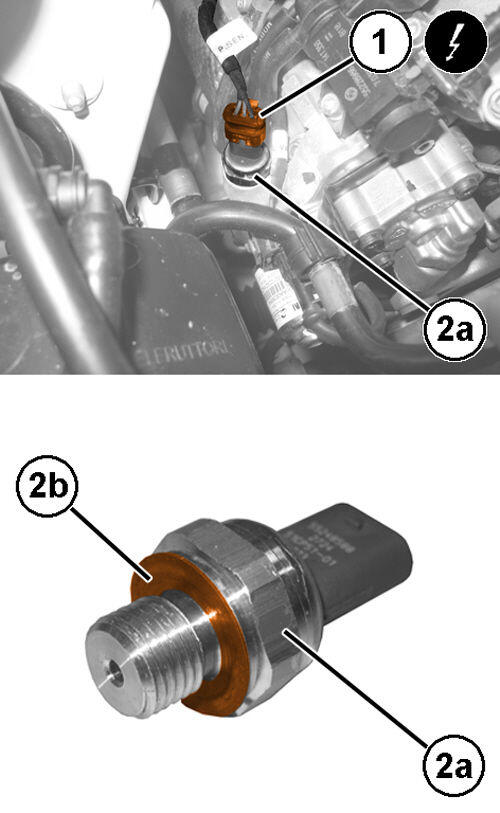

Courtesy of CHRYSLER GROUP, LLC
Disconnect the right turbocharger lubrication deactivation circuit oil pressure sensor wire harness connector (1).
Remove the right turbocharger lubrication deactivation circuit oil pressure sensor (2a) complete with gasket (2b).

INSTALLATION

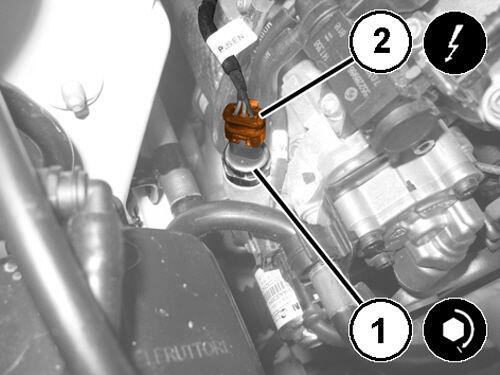

GC0193320

Courtesy of CHRYSLER GROUP, LLC

Using a NEW gasket, install the right turbocharger lubrication deactivation circuit oil pressure sensor (1) and tighten it to the proper specification. Refer to TURBOCHARGER .
Connect the right turbocharger lubrication deactivation circuit oil pressure sensor wire harness connector (2).
Install the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
