Right Cylinder Head Lifter Deactivation Circuit Oil Pressure Sensor

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

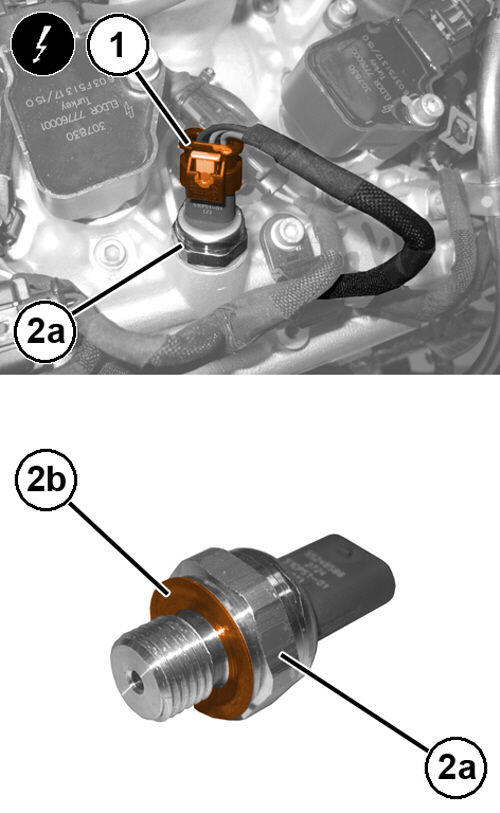

3. Disconnect the right cylinder head lifter deactivation circuit engine oil pressure sensor wire harness connector (1).
4. Remove the right cylinder head lifter deactivation circuit engine oil pressure sensor (2a) complete with gasket (2b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

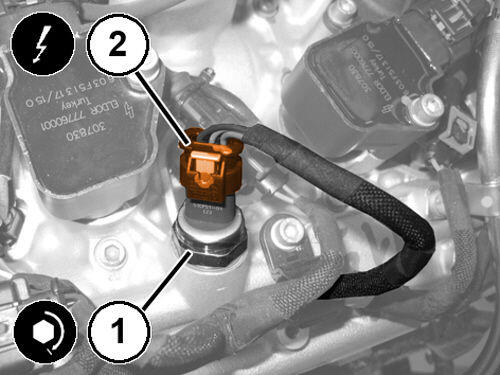

1. Using a NEW  gasket, install the right cylinder head lifter deactivation circuit engine oil pressure sensor (1) and tighten it to the proper specification. Refer to LUBRICATION  .
2. Connect the right cylinder head lifter deactivation circuit engine oil pressure sensor wire harness connector (2).
3. Install the right air cleaner outlet tube. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
