Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .

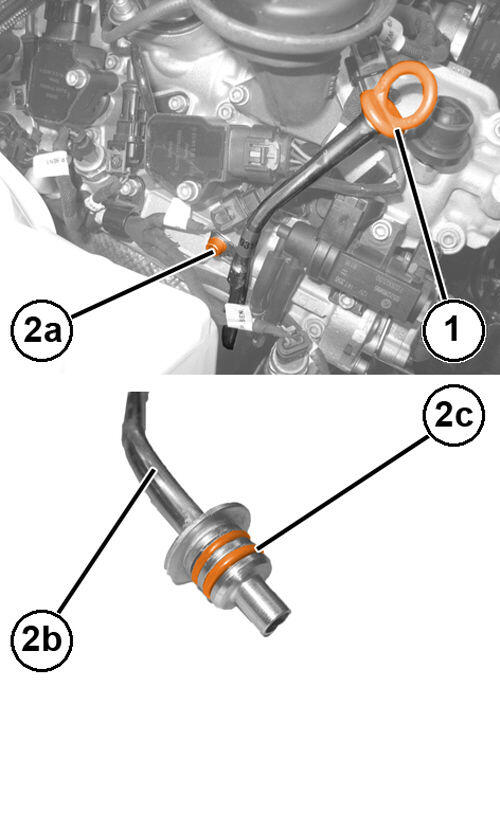

    GC0197683Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine oil dipstick (1).
  3. Remove the bolt (2a) and the engine oil dipstick tube (2b) with O-rings (2c).

INSTALLATION

  1. Using a NEW  O-rings, install the dipstick tube and securely tighten the bolt.
  2. Install the engine oil dipstick.
  3. Install the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
